13.5W 8" 800×1280 Face Recognition Digital Signage

Large Image : 13.5W 8" 800×1280 Face Recognition Digital Signage

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Topview
Certification:	CE, C-TICK, FCC, RoHS
Model Number:	TD-T801

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	negotiable
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	10-15 days after payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	3000pcs per month

Contact Now

Detailed Product Description

Material:	Screen+camera+sensor+tempered Glass+metal	Screen Size:	8.0 Inch IPS LED Screen
Power Consumption:	13.5W (Max)	Double Camera:	USB 200W Pixel Wide Dynamic, Anti-backlight 1 / 3-inch Image Sensor
Measure Distance:	1meter	Ram:	2GB
Storge:	8GB	Name:	Scanner Walk Through Face Recognition Punch Card Machine Control For Desktop And Pole 2
Highlight:	800×1280 Face Recognition Digital Signage , 8" Face Recognition Digital Signage , 13.5W Attendance Access Control Terminal

Scanner Walk Through Face Recognition Punch card machine Control For Desktop And Pole

Product Name	Attendance Access Control System Face Recognition Temperature Measurement Terminal

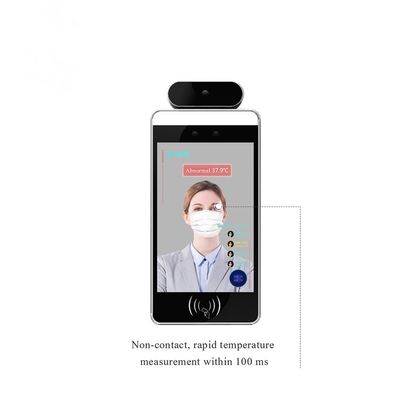

Function	Face Recognition and Temperature Measurement
Camera Resolution	2 million pixels

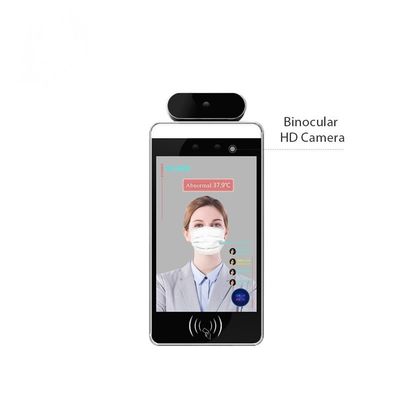

Camera Type	Binocular wide dynamic camera
Focusing distance	50-150cm
White balance	auto
Photo flood light	LED and IR dual photo flood light
Screen Size	8" IPS LCD screen
Screen Resolution	800×1280
CPU	RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core)
Storage	EMMC 8G
Network module	Ethernet and wireless (WIFI)
Audio	2.5W / 4R speakers
USB	1 USB OTG, 1 USB HOST standard A port
Serial communication	1 RS232 serial port
Relay output	1 door open signal output
Upgrade button	Support Uboot upgrade button
Wired network	1 RJ45 Ethernet socket
Face Detection	Supports detection and tracking of multiple people at the same time
Interface	Interfaces include device management, personnel / photo management, record query, etc.
Deployment method	Support public cloud deployment, privatized deployment, LAN use, stand-alone use
Temperature detection distance	1 meter (optimal distance 0.5 meter)
Temperature measurement range	10℃~42℃
Pixels	32 X 32 dots (total 1024 pixels)

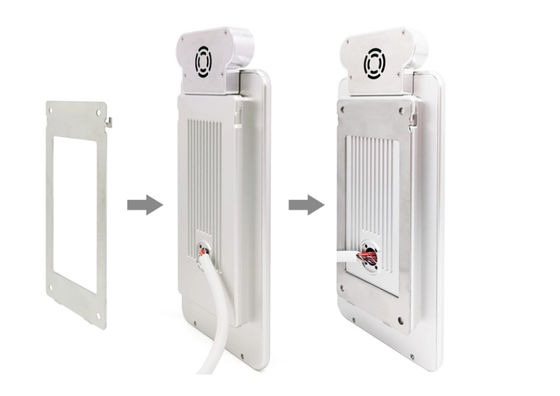

Installation method	Gate bracket installation

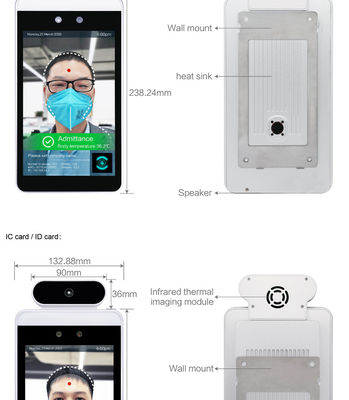

Size	296.18132.8825(mm)
Packing List	Machine * 1, power adapter * 1, manual * 1, certificate of conformity * 1
Support	Touch screen,1: N face recognition,1: 1 face comparison,Identify distance configuration, UI interface configuration,Upgrade rem
