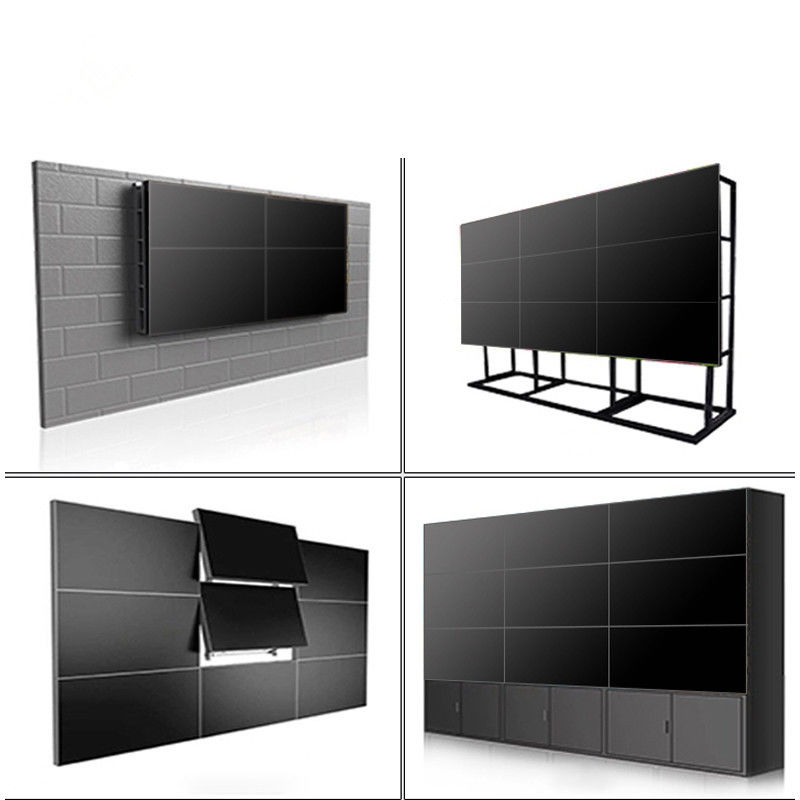

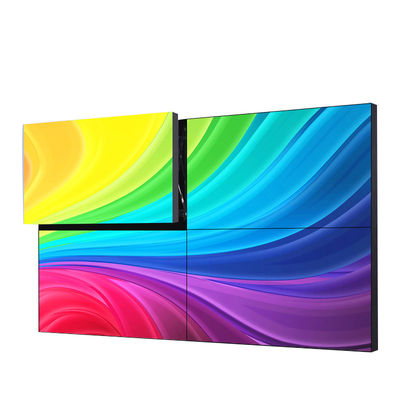

LVDS RS232 700cd/m² 1920x1080 LCD Splicing Video Wall Display Panel
Key Features
Original industrial DID LCD panel
Straight-down LED backlight system.
16.7M COLOR
178° wide vision angle.
Response time: ≤ 6ms.
Easy-going MD (modular design)
Multi-layer menu display.
7*24 uninterrupted working.
Ample built-in signal interface

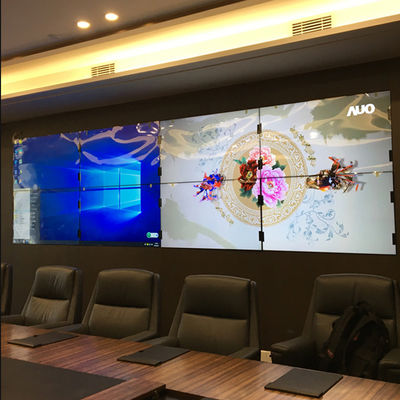

Advantages of LCD Video Wall
1, Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
2,High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
3,Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
4, Low power consumption and low heat radiation
5,Long service life lowers the cost of usage and maintenance
6,Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
7,Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
8,Economical and practical: High performance and high quality make it cost less.
| Panel Size |
55" LCD Screen |
| Backlight Type |
LED |
| Display Area |
1209.6(H)x680.4(v)mm |
| Aspect Ratio |
16:9 |
| Max Resolution |
1920X1080 |
| Color |
8Bit,16.7M |
| Brightness (nits) |
700cd/m2 |
| Contrast |
1400:1 |
| Visual Angle (H/V) |
178/178 ° |
| Response Time |
8 ms |
| Life Span |
>60,000 hours |
| Bezel width (between screens) |
1.8mm |
| Product Dimension |
1211.5(L)*682.3(H)*85.8(D) |
| Product Weight |
24KG |
| Interfaces (option 1- without 4K input) |
| Model No. |
TYL-DP5509 |
| Input |
1*DVI |
| 1*Support HDMI Input |
| 1*VGA (SVGA / XGA / WXGA) |
| 1*BNC (PAL/NTSC) |
| 1*RS232(RJ45) |
| Output |
2*RS232(RJ45) |
| 1*BNC (PAL/NTSC) |
| Interfaces (option 2- With 4K input) |
| Model No. |
TYL-DP5515-H4 |
| Input |
1*DVI |
| 1*Support HDMI Input |
| 1* DP (Display port) |
| 1*VGA (SVGA / XGA / WXGA) |
| 1*RS232(RJ45) |
| Output |
1* DP (Display port) |
| 1*RS232(RJ45) |
| Power |
| Power Supply |
AC100V~240V 50/60Hz |
| Maximum Power Consumption |
210W |
| Standby Power Consumption |
<3W |
| Working Environment |
| Working Temperature |
0℃~60℃ |
| Working Humidity |
5%-95%RH |
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
