Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | AC100~240V 50 /60 HZ, AC100V~240V,50/60Hz | Size: | 32/43/49/55/65 Inch |
|---|---|---|---|
| Normal Working Temperature: | -40 To 55 Celsius Degree | Warranty: | 1 Year, 2 Years (Non-artificial Damages) |
| Name: | 49inch 2500 Nits Free Standing Large Double Side Digital Signage Displays Totem Outdoor Lcd Display Monitor | Material: | Metal Case + Toughened Glass |
| Function: | Windows System, Android, Standalone | Optional Fuction: | Remote Control, Touch, Camera, WiFi, 4G Etc |
| High Light: | 2500nits Outdoor Lcd Display Monitor,49inch Outdoor Lcd Display Monitor,4000cd/m2 Double Side Digital Signage |
||

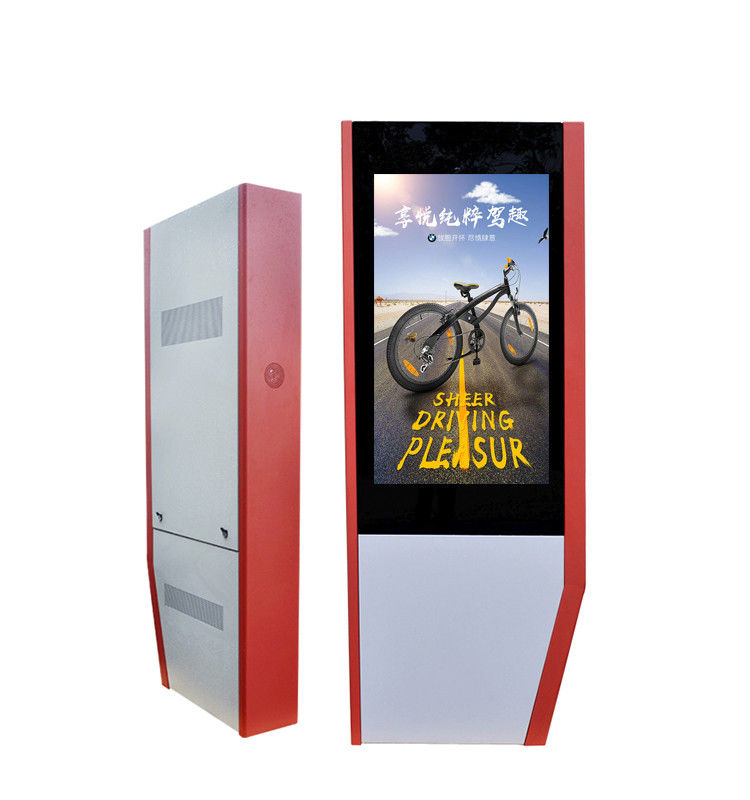

49inch 2500 nits free standing large double side digital signage displays totem outdoor lcd display monitor
Main features
1,Sun readable
Intelligent air conditioner cooling system integrated cooling and heating
Unique patented intelligent temperature control technology
Work stably and efficiently in wide temperature range between -40 and +75
(at sun exposed area)
Housing enclosure made of non-oxidizing material zinc coated steel
2.Waterproof
High brightness,higii definition full HD LCD panel
Anti-reflective glass with less than 3% Low reflectivity
Low humidity and constant temperature inner system evironment allows lcd panel
to perform optimally
With light sensor,automatically adjust the brightness,environmental friendly
and maximum energy saving
3.Low temperature
Unique patented sealing technology
Outdoor security anti-corrosion more them 8years.
IP65 protection grade enclosure,dust cannot enter into the kioskunder the 20Mbar pression,
and harmless when water jestting in every direction
Modular design,easy to maintain
4.Vandal proof
Strong steel housing protects inner system from vandalism
AR Bonding TM-protection 6mm laminated/tempered glass prevents direct LCD panel assault
Easy to remove and reinstall housing protective masks provide simple but effective protection of core enclosure
Enclosed parts are not reachable to passerby
Dimensions
|
Panel Specification |
Panel type | 49”LCD display screen |
| Active Display Area | 1074.91mm*605.24mm | |
| Aspect Ratio | 16/9 | |
| Backlight | LED | |
| Resolution | 1920*1080 | |
| Brightness | 2500cd/m2 | |
| Contrast ratio | 3000/1 | |
| Visible angel | 178°(H) / 178°(V) | |
| Lifetime | 60000 hours | |
|
Other Component Specification |
Port | VGA,HD.MI(Optional) |
|
6mm AR toughened glass
|
99.99% anti-ultraviolet | |
| >50% of solar radiation | ||
| >93% transmittance rate | ||
| >3% Reflectance | ||
| >50% solar heat insulation rate | ||
| EBM Centrifugal wind | Voltage 24V | |
| Working voltage 20.4-27.6V | ||
| Starting voltage 12V | ||
| Average speed 2400rpm Minimum speed 2160 rpm | ||
| Average current 0.26A Maximum current 0.312 | ||
| Average power Accessed 3.12 Maximum 3.74 | ||
| Average airflow 74 Minimum airflow 66.6 | ||
| Average static pressure 2.0 Minimum static pressure 1.8 | ||
| noise 33db | ||
| Intelligent temperature control system | The fan speed can be automatically adjusted according to the operating temperature, with the heating function to meet the outdoor normal work of -40-55 degrees | |
| shell | 1.5mm galvanized steel+Zinc base powder+outdoor powder | |
| Photosensitive probe | Automatic Photosensitive Probe - Automatically recognizes the brightness of the surroundings by automatically adjusting the screen | |
| Lightning protection device | Prevent lightning strikes | |
| Time switch | Separable time setting timer switch | |
| Nano touch | Touch Type | Nano touch |
| Touch way | finger | |
| Touch effective recognition | >=5mm | |
| Touch accuracy | ±5mm | |
| Touch points | 10 | |
| First touching response time | <=10 millisecond | |
| Touches times | Any | |
| Power | Power input | AC 108-115V AC 208-240V |
| Fan power supply | 24V 480W or 600W | |
| Screen display and backlight power supply | 24V+12V Hybrid power supply 200-400W | |
| Work condition | Work temperature | -20°C to +50°C |
| Storage temperature | -20°C to 60°C | |
| Work humidity | 5% to 100% | |
| Storage humidity | 5% to 100% | |
| All-in-one unit | Installation | Floor standing |
| Dimension | 2100×860×220(mm) | |
| Color | Black | |
| Material | Mental | |
| Gross weight | 180KG |
Why outdoor digital sigange different ?
Outdoor kiosks are often located in public spaces. When the kiosks have public access, they are left open to factors and conditions that may result in internal or external damage from physical abuse or extreme weather. So outdoor digital signage products is quite different from indoor products in terms of quality, build, material, technical data, and of course the price too.
Sunlight Readable Is A Must !
Brightness Auto-adjustable with light sensor control
Waterproof And Dustproof Is a Must !
Cooling System Is A Must
AC cooling: AC (air conditioning) cooling is a must for customers from countries which have extreme weather in Summer or Winter. Or you have special requirements on dustproof, AC cooling is the best choice.
Application Area
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference
center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacation village, KTV bar, Internet bar,
Beauty salon, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.l
4. Business Organizations: Supermarket, Shopping malls, chain store, 4S shop, Restaurant,
Hotel, travel agency,Chemist's shop, etc. bus tv, bus monitor,lcd display, lcd advertising display
5. Public Service: Hospital, School, Telecom, Post office, etc.
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
