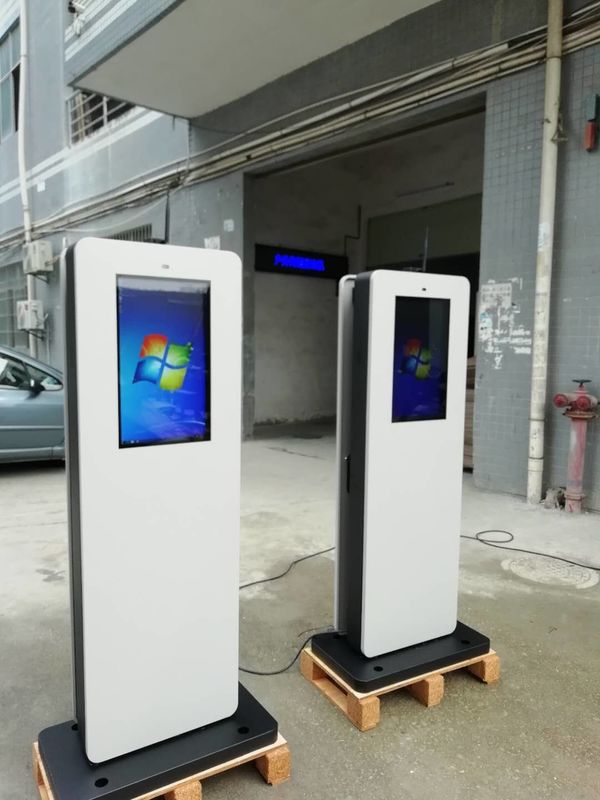

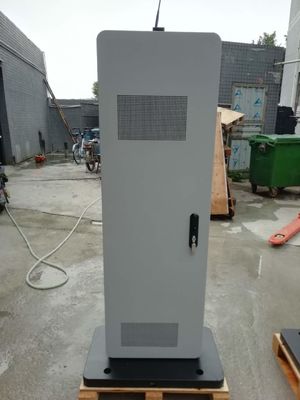

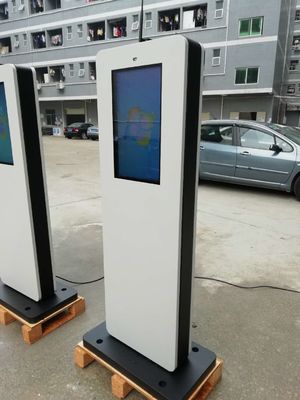

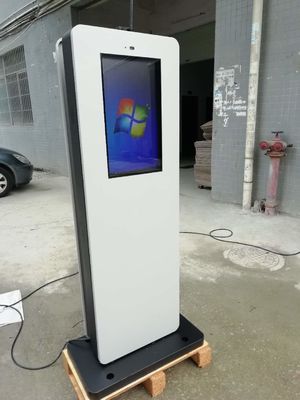

22 Inch 2500nits Interactive Digital Signage Kiosk IP65 1200W

22 Inch 2500nits Interactive Digital Signage Kiosk IP65 1200W
22 Inch 2500nits Interactive Digital Signage Kiosk IP65 1200W
video play

Large Image :  22 Inch 2500nits Interactive Digital Signage Kiosk IP65 1200W

Product Details:
Place of Origin: Guangdong, China
Brand Name: Topview
Certification: CE, C-TICK, FCC, RoHS
Model Number: OT-2256
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10-15 working days after payment
Payment Terms: T/T, Western Union, MoneyGram,
Supply Ability: 4000PCS per month
Detailed Product Description
Input Voltage: AC100~240V 50 /60 HZ, AC100V~240V,50/60Hz Size: 32/43/49/55/65 Inch
Normal Working Temperature: -40 To 55 Celsius Degree Warranty: 1 Year, 2 Years (Non-artificial Damages)
Name: Cold Rolled Steel 22 Inch Smart Outdoor Info Kiosk With IP65 Anti-water Anti-Snow Anti-Glare Anti Vandal After Sales Service: E Provided: Video Technical Support, Free Spare Parts, Field Installation
Optional Function: 3G/4G/Camera/Printer/Human Sensor/LOGO Operating System: Windows/Linux/Android
High Light:

2500nits Interactive Digital Signage Kiosk

,

22 Inch Interactive Digital Signage Kiosk

,

1200W Digital Signage Floor Stand

Cold Rolled Steel 22 inch Smart Outdoor Info Kiosk with IP65 Anti-water Anti-Snow Anti-Glare anti vandal





Main features




1. Brightness Adjustable
Brightness adjustable, Let The Screen Display Adjust Based On Different Time Of Day And Night, Which Can Provide The Best
Experience To The Viewer.
It Also Allows To Extends The Life Of Screen And Save Energy Costs, Lower Heat

2. Various Content
Support Video, Picture, File, Audio, Subtitle, Webpage Etc

3. Long Remote Content Management System
Engineers can achieve 90% monitoring and management in the office
Support long-distance online publishing, monitor current broadcast programs, manage multiple devices etc





Size 22 inch
Diplay Arean 493*320MM
Display ratio 16:9
Resolution 1920*1080(FHD)
Brightness 2000-2500cd/m2
Contrast 4000:1
Viewing Angle 178°H / 178°V
Processor Rock Chip RK3188 Qual Core
RAM Standard:1GB
ROM Standard: 8GB
Port USB*4 ; RJ45*1
Protection Grade IP55/IP65(Optional)
Weight 80KG
Installation Free standing
Cover Glass 6 mm AR Glass
Video Port VGA,HDMI
Audio Ports I/O input and output
Brightness Control Automatic Photosensitive System
Temperature Control Intelligent fan, Air Condition, Automatic temperature sensing
Working Temperature -30°C to +50°C
Work Humidity 5% to 90%
Power Supplier 220V
Power Consumption 1200W

Webcam

HD video recording and video chatting, built-in microphone captures voice loudand clear.
RFID/Contactless Card Reader Interface:USB, antenna inside,CCID compatiable
Barcode Scanner

High sensitive,Read all 1D&2D barcodes





Why outdoor digital sigange different ?

Outdoor kiosks are often located in public spaces. When the kiosks have public access, they are left open to factors and conditions that may result in internal or external damage from physical abuse or extreme weather. So outdoor digital signage products is quite different from indoor products in terms of quality, build, material, technical data, and of course the price too.



22 Inch 2500nits Interactive Digital Signage Kiosk IP65 1200W 0

22 Inch 2500nits Interactive Digital Signage Kiosk IP65 1200W 1





22 Inch 2500nits Interactive Digital Signage Kiosk IP65 1200W 2







Application Area



1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference

center, Talent market, Lottery center, etc.

2. Entertainment Places: Movie theatre, Fitness center, Vacation village, KTV bar, Internet bar,

Beauty salon, etc.

3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.l

4. Business Organizations: Supermarket, Shopping malls, chain store, 4S shop, Restaurant,

Hotel, travel agency,Chemist's shop, etc. bus tv, bus monitor,lcd display, lcd advertising display

5. Public Service: Hospital, School, Telecom, Post office, etc.



Wifi 43" 55" Outdoor LCD Digital Signage Touch Screen Weatherproof Sunreadable



22 Inch 2500nits Interactive Digital Signage Kiosk IP65 1200W 4



FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram



22 Inch 2500nits Interactive Digital Signage Kiosk IP65 1200W 5





High sensitive, read all 1D &2D barcodes
