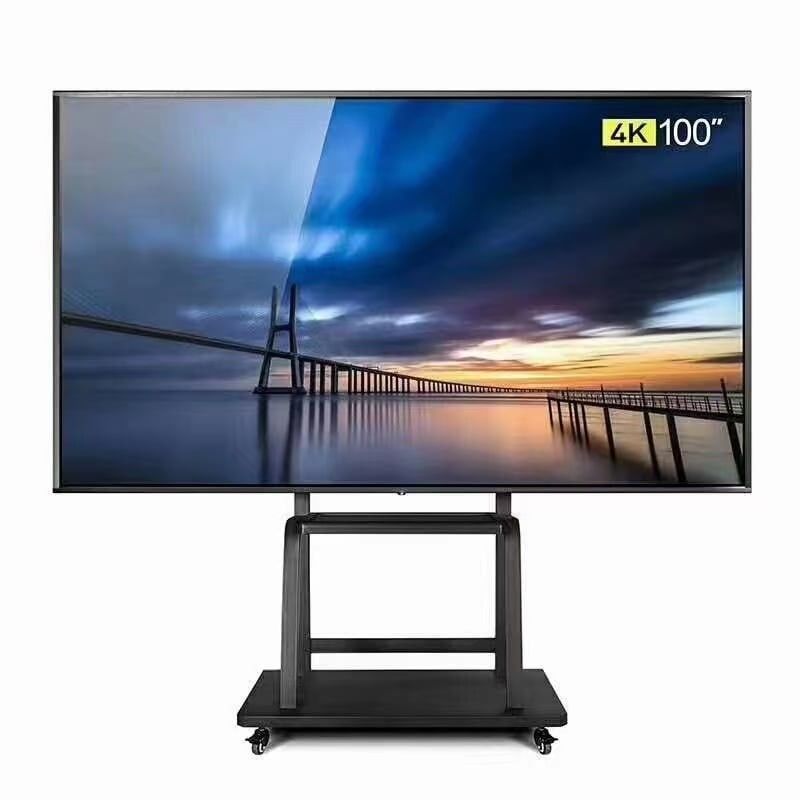

10 Point Muliti High sensitive all-in-one pc 100 inch android and win10 4K super smart tablet pc touch
Features:
1. 3840*2160 4K resolution, restore the real color world, ultra high-definition visual enjoyment
2. Support Android and WIN10 dual system optional to meet various requirements
3. I5, 4G, 128G SSD high configuration computer. I7 / 8G RAM / 256G SSD optional
4. Multiple input sources such as HD, VGA, AV, USB, SD card, etc.
5. 4mm tempered glass protection with anti-glare
6. 20 points touch, 1mm recognition accuracy, better handwriting presented, restore the true tactile impression of pen and paper
7. Support wireless projection function, 4 split-screen display
8. With whiteboard software, one-point writing, two-point zooming, erasing by the back of the hand, multi-point moving, arbitrary annotation, support writing, marking pictures/videos/PPT, PDF, WORD and other format files.
9. Professional for Conference, Education, Training, Presentation.
Specifications
| DISPLAY INFORMATION |
| Screen Size |
100 inch |
| Panel Type |
a-Si TFT-LCD, D-LED |
| Aspect Ratio |
16:9,Wide SXGA |
| Resolution |
3840*2160P |
| Viewing Angle |
89/89/89/89 |
| Brightness |
450cd/m2 |
| Active Area (mm) |
2204x1239.5 |
| Contrast Ratio |
1200:1 |
| Display Color |
16.7m |
| Field Frequency |
60Hz |
| Service Lifetime |
≥50,000 hours |
| TOUCH PANEL |
| Sensing Type |
Infrared System (Multi 10 point touch) |
| Response Time |
8ms |
| Connection |
Full-speed USB (Driver free) |
| Surface Protection |
AG Glass with 4mm thickness Standard |
| CONNECTION TERMINAL |
| Operating System |
Android 5.0 |
| CPU |
Cortex A53 1.4GHz |
| RAM |
DDR3 2G |
| ROM |
TSD FLASH 32G |
| SD card slot |
Support MAX 128G |
| Port |
USB 3.0*2, USB 2.0*2, VGA IN*1, VGA OUT*1, AUDIO IN*1, HD IN*2, Touch USB*1, Rs232*1, MIC*1, SD CARD*1,, YPbPr IN*1, AV IN*1; AV OUT*1, EAR PHONE*1, RF IN*1;SPDIF out*1;
RJ45/LAN in out*1;
|
| Screen Interface |
Power, Signal, Menu, Home Page, ECO, V+, V-, PC |
| Speaker |
12 W + 12 W (8Ω) |
| Languages |
English, French, Germany, Arabic, Italian, Japanese,Korean, Russian, Spanish, etc |
| Built-in OPS Computer |
| Operation System |
Windows 10 (Pre-authorized) |
| CPU |
I5 |
| RAM |
4GB |
| ROM |
128G SSD |
| Graphic card |
HD Graphics, Supports 1080P, H264, 3D play |
| Network |
WIFI/ RJ45 |
| Port |
USB2.0*2/ USB3.0*2/ HD out*1/ VGA out*1/ RJ45 Lan port*1/ Speaker out*1/ Mic in*1 |
| ELECTRICAL |
| Power Supply |
96~264V AC, 50/60Hz |
| Power Consumption |
≤300W |
| ENVIROMENTAL |
| Operating Temperature |
0℃~50℃ |
| Storage Temperature |
-10℃~60℃ |
| Humidity |
20% ~ 80% |
| MECHANICAL |
| Dimension L*W*H (mm) |
2273.3x111.5x1359 |
| Package L*W*H (mm) |
2416x340x1638 |
| Net weight (kg) |
142KG |
| Gross weight (kg) |
187KG |
| ACCESSORIES |
| Remote Control*1, Power Cord*1, Touch Pens*2, Wall Bracket*1 |
|
Product Dimension & Accessories:
|
|
Panel Size
|
|
|
|
|
|
Model No.
|
|
|
|
|
|
Dimension(L*H*D, mm)
|
|
|
|
|
|
Packing (L*D*H, mm)
|
|
|
|
|
|
Net Weight
|
|
|
|
|
|
Gross Weight
|
|
|
|
|
|
VESA (mm)
|
|
|
|
|
|
Acceeories
|
Wifi Antanna *3；Adsorption Pen *1；Remote Control *1；Instruction Manual *1；QC/warranty card *1；Power Cable(1.5 m)*1；Wall Mount Brackets *1(set)
|
Application
1. OFFICE: PPT presentations, meeting report, teleconferencing, remote desktop, screen extending, skype &video call, share files.
2. HOTEL: lower specifications for hotels, the youngers can not only use it to watch 3d movies, but also use it to play 3d games and surf internet, etc.
3. FAMILY ENTERTAINMENT: watching movies, playing games, extending, skype & face call, music listening, surfing the internet.
4. SCHOOL: paperless teaching, media player, PPT presentation, training institution, distance teaching, video conference, share files, picture display, Wordpad function.
5. PUBLIC PLACE: map inquiry, information inquiry, video playing, self-service lobby information, public advertising.
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
