Long Narrow Shelf Advertising Screen Stretch Bar Led Display Digital Signage P1.25

Large Image : Long Narrow Shelf Advertising Screen Stretch Bar Led Display Digital Signage P1.25

Product Details:

Place of Origin:	GuangDong,CN
Brand Name:	Topview
Certification:	CE,FCC,ROSH,C-TICK
Model Number:	TD-S2801

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	negotiable
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	10-15days after payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	4000PCS per month

Contact Now

Detailed Product Description

Input Voltage:	AC100~240V, 50 /60 HZ	Operating Temperature:	-20~60°
Brightness:	5-600 Cd/m2	Resolution:	240dots(W)*45dots(H)
Color:	Full Color	Panel Size:	300x60x23.5mm
Pixel Pitch:	64000dot/sqm, 1.25mm	Product Name:	P1.25 Commercial Long Narrow Shelf Display Advertising Screen Stretch Bar Led Display Digital Signage
Highlight:	P1.25 Display Digital Signage , Shelf Advertising Screen Display Digital Signage , Stretched Bar Lcd Display Digital Signage

P1.25 Commercial Long Narrow Shelf Display Advertising Screen Stretch Bar Led Display Digital Signage

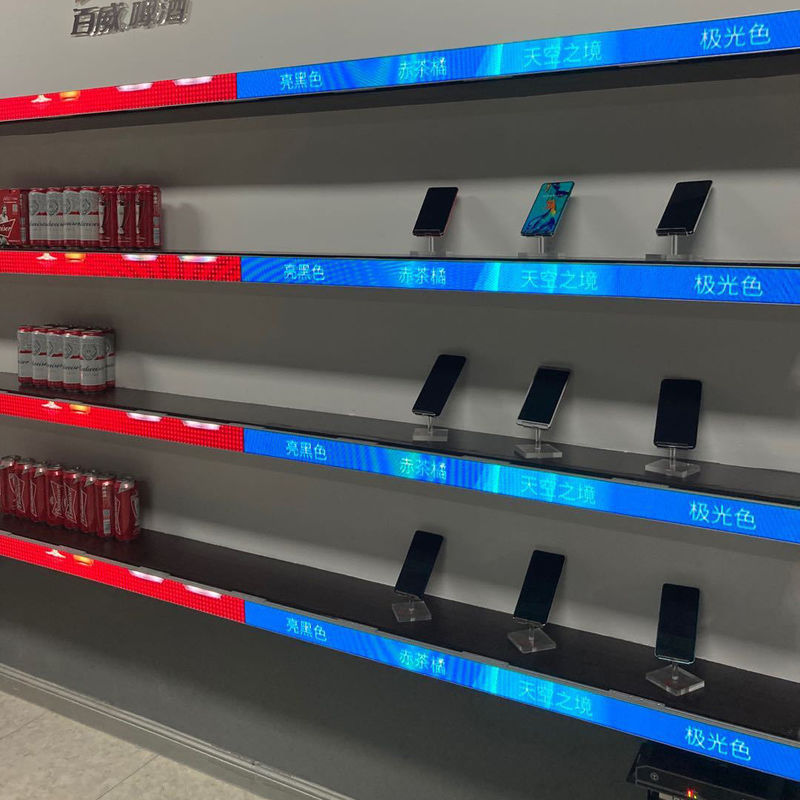

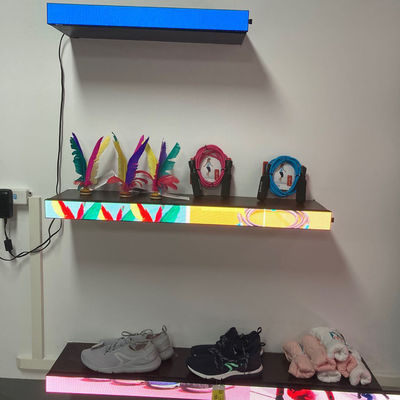

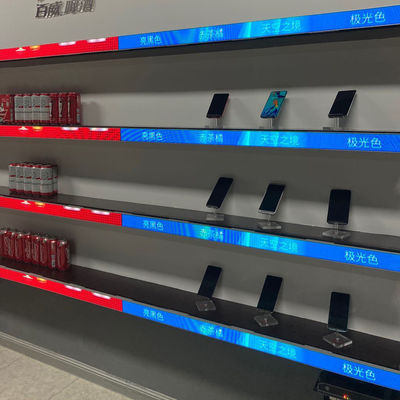

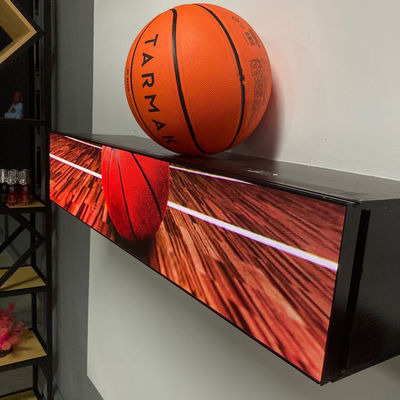

Shelf-edge displays/ Smart Shelf

Topview Smart Shelf Screen Sign is the World's Most Innovation for shelf-edge displays, by using high resolution P2 LED module, approve for closely video show on your shelf/rack,engage consumers in a one to one fashion, that's a best way to show your products before someone making choice. It's capable of delivering dynamic pricing, promotion, product and brand related information on the shelf screen sign,make sales uplift at most

Item	TPV231
Pixel Pitch ( mm )	1.25
LED Configuration	COB 1R1G1B
Resolution ( dot/m² )	640000
Cabinet size (W×H×D) mm	300x60x23.5
Cabinet resolution(W×H) dot	240x45
Cabinet Material	Aluminum
Scanning mode	1/45
CabinetFlatness ( mm )	≤0.10
Gray level ( Bit )	14
LED Lamp Protection Degree	IP65
Cabinet Weight (KG)	0.35
Optical	Brightness	50-600cd/㎡
	Color Temperature	3200-9300K adjustable
	Brightness Uniformity	≥98%
	Color Uniformity	Within 0.003Cx, Cy
	Horizontal/Vertical View Angle	≥170°
	Contrast Ratio	≥10000:1
	Color Calibration of Single Dot	Yes
	Brightness Calibration of Single Dot	Yes
Operation	Drive Mode	Constant Current Drive
	Refresh Frame Frequency	50/60 Hz
	Max Refresh Rate	≥3840Hz
	Power Connection Port	XT60
	Signal Connection Port	USB/RJ45
	Input Voltage DC	24V
	Input Current DC	0.6A
	Cabinet Max Power Consumption	15W
	Working Temperature	-20℃~+80℃
	Working Humidity	10%～95%RH

Long Narrow Shelf Advertising Screen Stretch Bar Led Display Digital Signage P1.25 0

Long Narrow Shelf Advertising Screen Stretch Bar Led Display Digital Signage P1.25 1

Long Narrow Shelf Advertising Screen Stretch Bar Led Display Digital Signage P1.25 2

Long Narrow Shelf Advertising Screen Stretch Bar Led Display Digital Signage P1.25 3

Long Narrow Shelf Advertising Screen Stretch Bar Led Display Digital Signage P1.25 4

Long Narrow Shelf Advertising Screen Stretch Bar Led Display Digital Signage P1.25 5

FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
