Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | AC100~240V 50 /60 HZ, AC100V~240V,50/60Hz | Size: | 32/43/49/55/65 Inch |
|---|---|---|---|
| Normal Working Temperature: | -40 To 55 Celsius Degree | Warranty: | 1 Year, 2 Years (Non-artificial Damages) |
| Name: | Smart City Outdoor Ergonomic 55inch Floor Standing PCPA Touch Screen Outdoor Totem Signage Kiosk | After Sales Service: | E Provided: Video Technical Support, Free Spare Parts, Field Installation |
| Color: | Black, White, Silver, Golden, Blue | Brightness: | 2500nits |
| High Light: | 2500 Nits Outdoor Digital Signage2500 Nits Outdoor Digital Signage,8g Ram Outdoor Digital Signage,FCC Digital Signage Lcd Display |
||

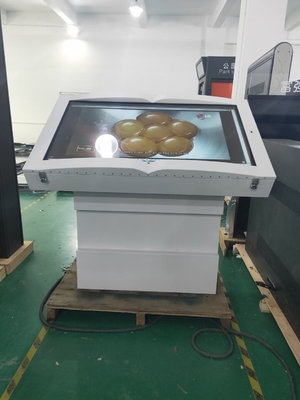

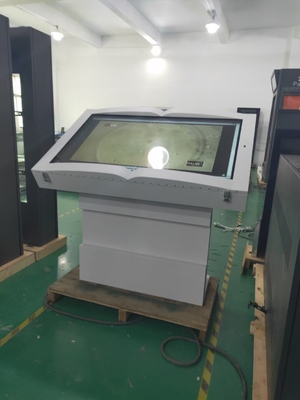

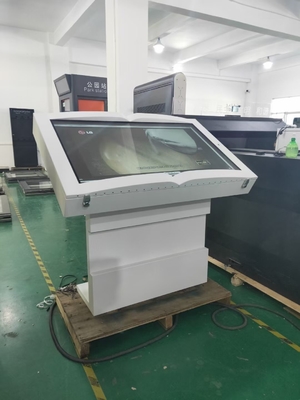

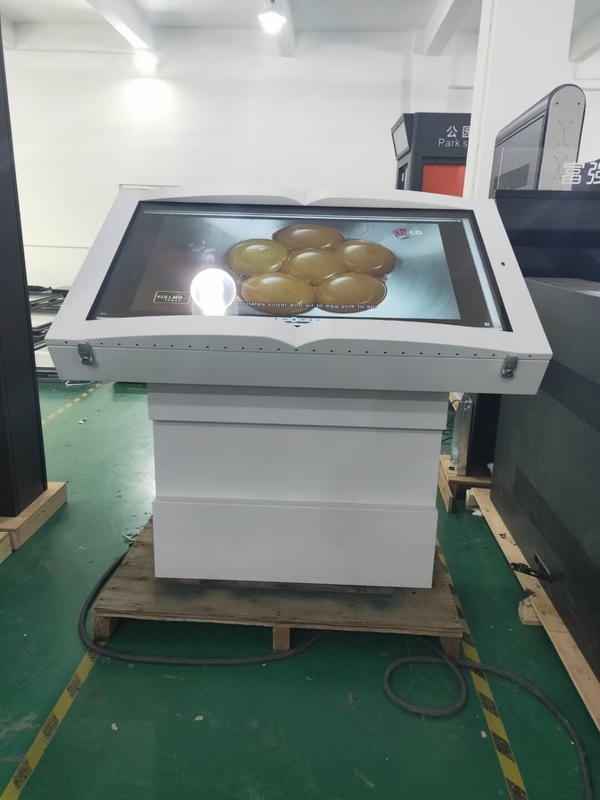

Smart City Outdoor ergonomic 55inch floor standing PCPA touch screen outdoor totem signage kiosk
1, high brightness LCD Module, standard 1500nits brightness,1920x1080 resolution,4000:1 contrast,LED backlight, Sunlight viewable, built in light sensor module, screen brightness can change according to the surrounding environment,
2, Special designed LED backlight modular + constant current source drive components
3, Special designed fan cooling system, automatically temperature control with temperature sensor built in, to make the display inner part work at a constant temperature
4, IP55 grade all weatherproof dustproof enclosure, +6mm vandal-proof protective glass, +1.5mm SPCC
5, Fan cooling, heat exchange system
6, Interfaces: Android : support ,VGA input, USB, WIFI, RJ45; Windows: , VGA output, USB,WIFI, RJ45
7,OS: Android OS 5.1+, Windows OS 7/8/10, RS232 board optional
8, Adapt Akesu paint powder from Germany, 5-7 years no fade, professional anti-corrosion more than 5 years
9, LCD protect function: Auto Shut off function upon internal temperature reaches 70℃
10, Integrated with Lightning protection, leakage protection switch,
11, Adapt Taiwan Meanwell power, A/C 100-240V, 50/60Hz
12, Different enclosures can be customized exactly according to client requirements
13, Screen surface 6mm AR glass, light transmittance can be highest 97%
14, Unique LCD screen substrate wide range temperature -30℃-60℃ processing
| Interactive touch screen kiosk with mini pc and digital menu board | ||
| Product Model | TPV-5557 | |
| High-brightness Display Screen | Screen size | 55 |
| Resolving power | 3840X2160 | |
| brightness | 1500-2500 nit | |
| Display size | 1209.6×680.4 mm | |
| viewing angle | 178 degree horizontal/178 degree vertical | |
| Brightness control | Automatic Sensitization | |
| Whole machine parameters | Reference Size of Vertical Screen (High x Width x Thickness) | - |
| mm | ||
| Power Supply | AC 208-240V/ | |
| 50Hz | ||
| Heat Dissipation System | Intelligent Industrial Air Conditioning | |
| Power | ≤400W | |
| working temperature | -20°C-45°C | |
| Working humidity | 5%-90%RH | |
| Waterproof grade | IP55 | |
| Weight (air-cooled) | 95Kg | |
| Anti-corrosion Technology of Shell | Use galvanized sheet + special outdoor powder for surface spraying (outdoor corrosion protection for more than 7 years). | |
| Optional configuration | A main board | Computer motherboard, Android motherboard |
| network transmission | stand-alone,WIFI,3G,4G | |
| touch | 10-point capacitive touch, 10-point nano-touch, capacitive screen | |
| The above are the reference parameters of the standard section. | ||
Sunlight Readable Is A Must !
Brightness Auto-adjustable with light sensor control
Waterproof And Dustproof Is a Must !
Cooling System Is A Must
Application Area
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference
center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacation village, KTV bar, Internet bar,
Beauty salon, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.l
4. Business Organizations: Supermarket, Shopping malls, chain store, 4S shop, Restaurant,
Hotel, travel agency,Chemist's shop, etc. bus tv, bus monitor,lcd display, lcd advertising display
5. Public Service: Hospital, School, Telecom, Post office, etc.
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
