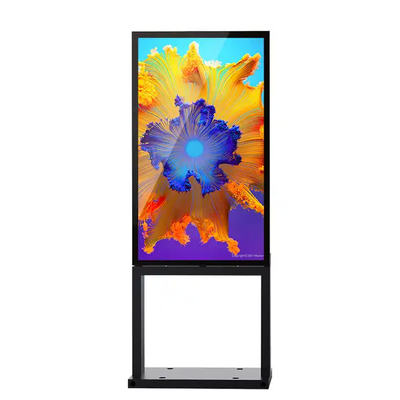

55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation

China Shenzhen Topview Display Technology Co.,Ltd certification
China Shenzhen Topview Display Technology Co.,Ltd certification
Good product ,good service . Thank you guys so much,We will place more orders with you in 2018

—— Akhmad

Enthusiasm company, the product i got yesterday, the color i like it, the product i like.

—— Miguel

Very appreciated could cooperate with this professional team, very patience, professional company team!! Good product, i like it, my customer likes it.

—— Leo Zurita

I'm Online Chat Now

55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation

55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation
55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation
video play

Large Image :  55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation

Product Details:
Place of Origin: Guangdong, China
Brand Name: Topview
Certification: CE, C-TICK, FCC, RoHS
Model Number: OT-OP5556S
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10-15 working days after payment
Payment Terms: T/T, Western Union, MoneyGram,
Supply Ability: 4000PCS per month
Detailed Product Description
Input Voltage: AC100~240V 50 /60 HZ, AC100V~240V,50/60Hz Size: 32/43/49/55/65 Inch
Warranty: 1 Year, 2 Years (Non-artificial Damages) Name: 55'' IP66 Optical Bonding Waterproof 2500 Nits Outdoor Lcd Advertising Digital Display Kiosk With Llow Power Dissipation
Material: Metal / Aluminum Case+Tempered Glass Panel Play Mode: Circulation / Timing / Inter-cutting Etc...
Color: Black/Silver/White/Customized Surface: Spraying,frosted Aluminum
Wide Temperature Display: -40℃-80℃ (for Optional) Power Consumption: 180W(55")

55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation



Outdoor Portrait Displays Floor standing with fan ...





55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation 0



55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation 1



Model No.
OT-OP5556S
Panel size
32''
43''
49''
55''
Panel Brand
LG / BOE TNI 110 ° Panel
Panel backlight
TFT-LCD
Number of pixel
1080x1920
Viewing angle
178/178 (wide)degree
Aspect ratio
16:9
Response time
6m-sec
Life time
60000hours
Features for outdoor
Conservation of vision
Light sensor (automatic change the brightness be based on sun light)
AR glass
6mm AR high transparent tempered glass
Light transmittance 97%
Reflectance less than 3%
Block 99% of ultraviolet rays and 52% of solar radiation heat
Tempered explosion-proof IK10
Thermostatic control
Temperature detector, center control PCB
Cooling System
Powerful Turbofan & cross flow fan
Fans cooling / AC cooling / Fansless
Waterproof enclosures
Public safety
Lightning proof and ALCI
Color
White, Black, Grey, customized
Surface treatment
The inner layer is sprayed with zinc-rich primer, the surface is sprayed with Aksu outdoor plastic powder
Shell material
1.5mmSGCC galvanized steel, 304/316 stainless steel optional
Outdoor anti-corrosion
≥10 years
Screen position
Portrait (default)
Installation
Wall mount/ Floor stand
Loudspeaker
Yes, 16 Ohm/ 10 watt *2 pcs
Power input
AC220/110V±10%,50/60 HZ
IP code
IP66
Power consumption(Max)
130W/h
180W/h
260W/h
300W/h
Weight (kg)
40
50
60
80
Working temperature
'-30℃ to 70℃
Storage temperature
'-30℃ to 50℃
Operating Humidity
10%~90%
Storage Humidity
5%~95%
Android OS
Rockchip®, RK3288 (1.8GHz, ARM Quad- core A17) 2G DDR3 16 G flash memory
Windows OS
Intel i5 (4th generation) Processor 4G DDR3 128G SSD
Monitor HDMI input
HDMI input x 1, DVI x 1, PC-RGB x1, PC audio-in x1, 3.5 jack plug x 1



55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation 2



 Ordinary highlight LCD VS Optical Bonding LCD



55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation 3

55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation 4

55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation 5

55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation 6

















Application Area



1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference

center, Talent market, Lottery center, etc.

2. Entertainment Places: Movie theatre, Fitness center, Vacation village, KTV bar, Internet bar,

Beauty salon, etc.

3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.l

4. Business Organizations: Supermarket, Shopping malls, chain store, 4S shop, Restaurant,

Hotel, travel agency,Chemist's shop, etc. bus tv, bus monitor,lcd display, lcd advertising display

5. Public Service: Hospital, School, Telecom, Post office, etc.







55'' IP66 optical bonding waterproof 2500 nits outdoor lcd advertising digital display kiosk with llow power dissipation 7



FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
