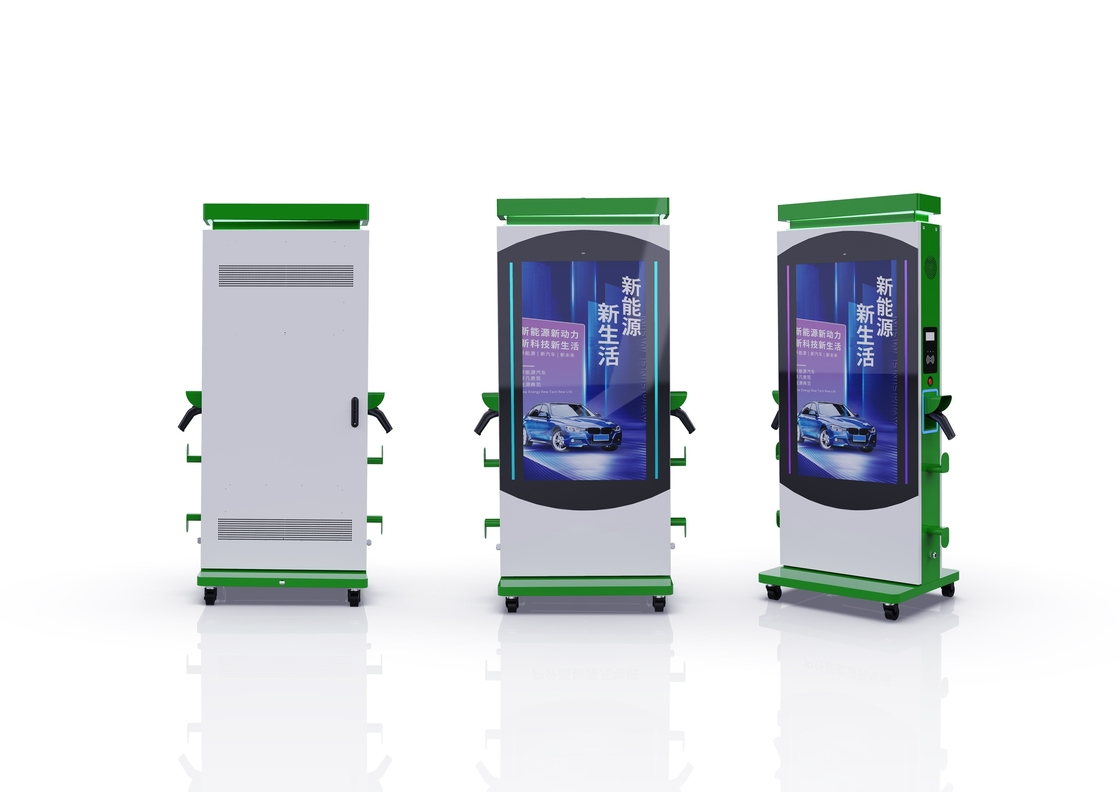

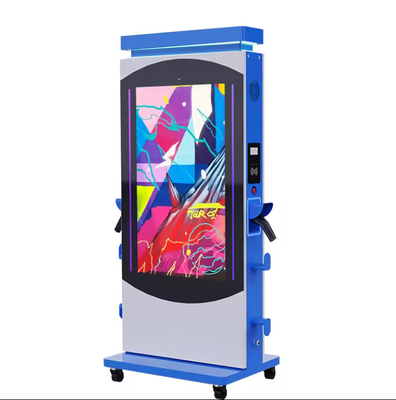

55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage

55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage
55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage
video play

Large Image :  55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage

Product Details:
Place of Origin: Guangdong, China
Brand Name: Topview
Certification: CE, C-TICK, FCC, RoHS
Model Number: OT-EV5556
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10-15 working days after payment
Payment Terms: T/T, Western Union, MoneyGram,
Supply Ability: 4000PCS per month
Detailed Product Description
Features: Anti-Ultraviolet, Anti-Theft, Anti-Biological, Ant Input Voltage: AC100~240V 50 /60 HZ, AC100V~240V,50/60Hz
Normal Working Temperature: -40 To 55 Celsius Degree Name: 55inch Ip65 Waterproof Outdoor Advertising Monitor Lcd Totem Kiosk Digital Signage Display Screen With Free CMS
Input Voltage: 220-380V Size: 202X38X90 Cm
Cooling System: Fan Cooling/Air Condition/Aluminum Condutive Heat Disspation Weight: 135KGS
Warranty: 2 Years Resolution: 1920*1080/3840*2160

55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage





Technique Parameter for LCD Panel:
1. Panel size 21.5",32",43",49'',55'',65'', 75'', 86'' options LED backlight, All New A+ panel
2. Display area(mm)/mode: base on the screen size
3. Maximum resolution: 1920x1080 or 4K options
4. Display color: 16.7M
5. Pixel Pitch(mm): based on screen size to change
6. Brightness (nits) 2500-5000nits for selection
7. Contrast 1100:1 (Dynamic Contrast:100000:1)
8. Visual angle 178°/178°
9. Response time 12ms
10. Life(hrs) 60,000(hrs)
11. With screen sensor to check screen display status by system.
With touch or without touch options

Security Configuration
1. Power management: Moudule Power control indivadually with Circuit Breaker
2. Environment camera (if needed, addtional costs: $30)
3. Filter block percentage detection sensor.
4. Door open sensor
5. Shock sensor and warning with photos upload.

Outershell:
1. IP55 and IP65 level outershell is made by galvanized sheet.
2. With a protection layer of high-penetrating Tempered glass (with 5-8mm thickness) on the surface of the LCD Panel.
3. Surface finishing: heavy industrial grade of powder coating with an anti-wear texture for Outdoor using.
4. Water-proof, dust-proof double layer outershell,vandal proof.

Android OS 9.1.2 Solution/windows OS options
1,CPU: Quad core Cortex-A17, 2.0GHZ
2,GPU: ARM Mali-T764 GPU
3,DDR: DDR3 2G
4,ROM NAND FLASH: 8G
5,Exteral ROM Support up to 32G bytes sd card
6,WiFi Support 802.11b/g/n wifi module

Outdoor OMC system (outdoor maintenance and management cloud software system):
1.Every product inlcudes 10 kinds of sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration
sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor).
2. Problem and staus monitoring software included.
3.Touble shooting by software included.
4.Use softwae Remote Check key working performance by Group
5.Unnormal work alarm generation.

Control interface supporting:
1. RS232 Marve provide API and instruction protocol.
2. TCP/IP Marvel provide technical supporting.

Cloud service supporting:
1.CMS
2.OMC
3.d can support to help Customer to setup their own server.

Working Environment:
Temperature
Working temperature: -10°C~50°C for air flow cooling system, -30°~65° for air conditioning cooling system

Power supply
Industiral High level Power moduel AC100~240V 50 /60 HZ

ENVIRONMENT Work Temp -35ºC to 50ºC
Storage Temp -45ºC to 60ºC
Work/Storage Humidity 5% to 95%
FUNCTION Video Format/interface MP4,3GP,MPG,AVI,WMV,FLV,SWF,RMVB,MKV,VOB/VGA,HDMI
Image Format JPG,BMP,PNG,TIF,ICO,GIF,TGA
Audio Format/interface MP3,WMA,AMR,OGG,AAC,WAV,FLAC,APE/I/O inputs and outputs
OS Android 3288 2G RAM+8G ROM,expandable to 32G
Brightness control Automatic Photosensitive system
Temperature control Smart Fan Automatic Temperature sensing
Log Management Supportive to terminal log and playlist log
Power Mode Time-setting On or Off | Manual
HARDWARE Material cold-rolling metal plate + Special outdoor powder paint
Protective Glass 6MM Laminated and Tempered glass
Heat Dissipation Fan-cooling/Air condition cooling
Protective Level IP55/IP65(option item)
I/O Interface WIFI, 4G, USB, SD Card,USB *4 ,RJ45*1
Play Mode Plug and play, Network(Remote)
Speakers 2*10W Stereo
Carton Dimension Based on display size
N.W / G.W Based on display size
Accessories Remote Control, AC Power Cord, Key, Rack, Instruction, Approval Certificate, Warranty Card
Certificates CE/ccc/FCC/RoHS/IP67






55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage 0





55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage 1





Dimensions









55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage 2





55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage 3





Sunlight Readable Is A Must !

  • High Brightness: Our outdoor digital signage kiosk Max brightness is from 2000nits-5000 nits all available. Standard Outdoor Kiosk Brightness Max 2500 nits. which is also the most suitable brightness for most of customers from all around the world.
  • Patent Technology for High Brightness LED Module and Heat Conduction Design !





Brightness Auto-adjustable with light sensor control





  • Anti-Reflective: we adopted 6mm anti-explosive toughened glass with AR (anti-reflective) optical coating, Transmission> 97%, Reflection< 1%, UVblock up to 99%

Waterproof And Dustproof Is a Must !

  • Grade IP55 and IP65 stand for the same waterproof grade(the second number 5 ): Water projected by a nozzle against the enclosure from any direction shall have no harmful effect.

Cooling System Is A Must

  • Fan Cooling: smart fan cooling system works with temperature sensor to cool down the kiosk. Fan cooling system is suitable for countries have mild weather all year round.



AC cooling: AC (air conditioning) cooling is a must for customers from countries which have extreme weather in Summer or Winter. Or you have special requirements on dustproof, AC cooling is the best choice.



55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage 4

55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage 5

55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage 6



55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage 7

55 inch Outdoor LCD Display EV Charge Pile Station Waterproof for Ev Car Charger Station digital signage 8









Application Area



1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference

center, Talent market, Lottery center, etc.

2. Entertainment Places: Movie theatre, Fitness center, Vacation village, KTV bar, Internet bar,

Beauty salon, etc.

3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.l

4. Business Organizations: Supermarket, Shopping malls, chain store, 4S shop, Restaurant,

Hotel, travel agency,Chemist's shop, etc. bus tv, bus monitor,lcd display, lcd advertising display

5. Public Service: Hospital, School, Telecom, Post office, etc.





FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
