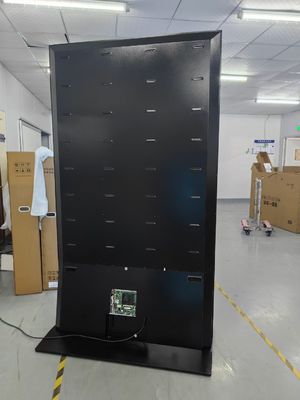

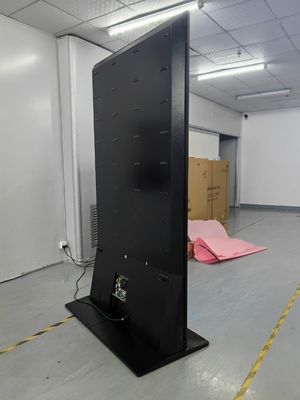

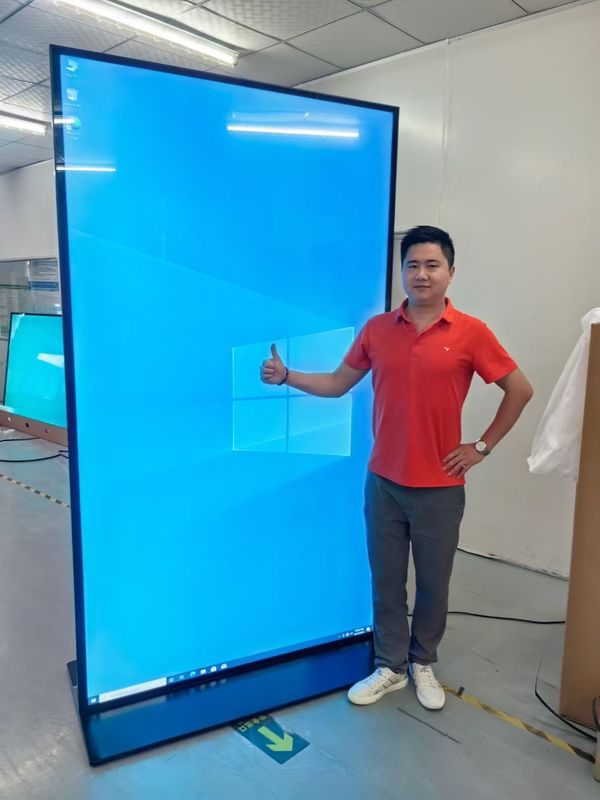

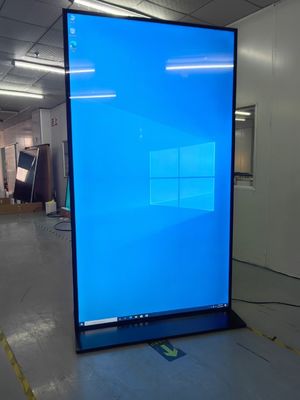

70/75/80/86 inch 4K Full Screen Digital Signage and Floor Standing Advertising Display Standing player kiosk touch
Main Features:
a, Horizontal and vertical screen at will but change;Definition of playing time;
b,Time display;Calendar;Playlists;
c, Data card protection function;Support screensavers;Automatic on and off;Scrolling subtitles;
d, Power switch protection;Broadcasting diversity;Multiple playback modes, video and audio formats;
e, Modular design;Complete management mechanism;Adopt centralized management;Support remote/local network control, support server operation control.
f, Perfect 10-point touch, handwritten and multi-gesture support;Touch speed less than 5ms, good accuracy, easy to use, easy to maintain;
e,Aluminum alloy + sheet metal structure, no sharp edge, wear-resistant and anticorrosive paint baking process, overall anti-riot design;
f,Advanced design concept, strict production technology, stable and reliable product quality, low failure rate;
d,Switch on and off the machine with one key to avoid on-site installation and debugging.
e,70 inch 75 inch 86 inch Full screen displays
f,UHD 4k High Resolution Full screen displays with compact design
| pecifications |
| Model No. |
TPV-AD6578 |
| Panel size |
70"-98"TFT-LCD |
| Display area(mm)/mode |
523(W)×930(H) 9:16 |
| Maximum resolution |
3840*2160 |
| Display color |
16.7M |
| Pixel Pitch(mm) |
0.4845(H)×0.4845(V) |
| Brightness (nits) |
500cd/m2 |
| Contrast |
2000:1 |
| Visual angle |
178°/178° |
| Response time |
5ms |
| Life(hrs) |
>60,000(hrs) |
| Touch Panel |
| Specification |
Infrared Touch/Capacitive Touch |
| positioning accuracy |
±2mm |
| Touch Media |
Finger/touch pen opaque objects |
| Transmittance |
≥92% |
| Glass Hardness |
7H |
| Click Mode |
2/4/6/8/10 points/multipoint(optional) |
| Response Time |
≤5ms |
| ClickLife Time |
>=60M times |
| Android |
| Andriod system |
Google Android 11.1 support multi-language with wifi moulde |
| Storage |
2G/4G/8G DDR3 |
| CPU |
1.8 Ghz/quad-core RK3288 |
| Flash |
8GB/16GB/32GB |
| Computer |
| Motherboard |
H61/H81 |
| CPU |
I3/I5/I7 |
| Memory |
DDR3 1333MHZ 4GB/8GB |
| Hardware |
SATA II320GB/500GB |
| Keyboard and Mouse(Optional) |
wireless waterproof keyboard and mouse set |
| Interface |
USB*4,VGA*1,DVI*1,HD*1,RJ45*1,Audio*1,MIC*1 |
| Software environment |
Windows 8/ Windows 10 /Windows 11 /Linux |
| Video |
| Color system |
PAL/NTSC/SECAM |
| OSD display( screen menu display) |
| Menu language |
Chinese/English( Multiple Language Supported) |
| Power |
| Power supply |
100-240V AC 12V/ DC |
| Maximum power consumption |
230W |
| Standby power consumption |
<3W |
| Temperature |
| Working temperature |
-20°C~+80°C |
| Storage temperature |
-40°C~+80°C |
| Working humidity |
25%~85% |
| Storage humidity |
20%~90% |
| Support signal format |
| Video format |
MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
| Audio format |
Wave/MP3/WMA/AAC |
| Image format |
JPEG/BMP/TIFF/PNG/GIF |
| Image resolution |
480P/720P/1080P |
| Appearance |
| Body dimension(Lx W x H)mm |
1000*500.*1300.2 ((for reference) |
| Panel color/appearance |
White, black, customized |
| Panel material |
Metal case SPCC |
| Installation |
Floor-standing |
| Quality Standard |
ISO9001,CCC,CE,FCC,ROHS |
| Sample leading time |
12~15 working days |
| Bulk order leading time |
12~15 working days |
| Payment term |
T/T or Western union |
| Warranty |
1 year |
FAQ:
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q: what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q: Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q: What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
