Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | AC 100~240V 50/60Hz | Viewing Angle: | 178/178° |
|---|---|---|---|
| Contrast Ratio: | 3000:1 | Pixel Pitch: | 0.53(H)x0.53(V)mm |
| Max Resolution: | 3840*2160 | External Control: | RS232 |
| Panel Technology: | Samsung DID | Active Area: | 1018.08(H)x572.67(V)mm |
| High Light: | indoor video wall,4k video screen |
||

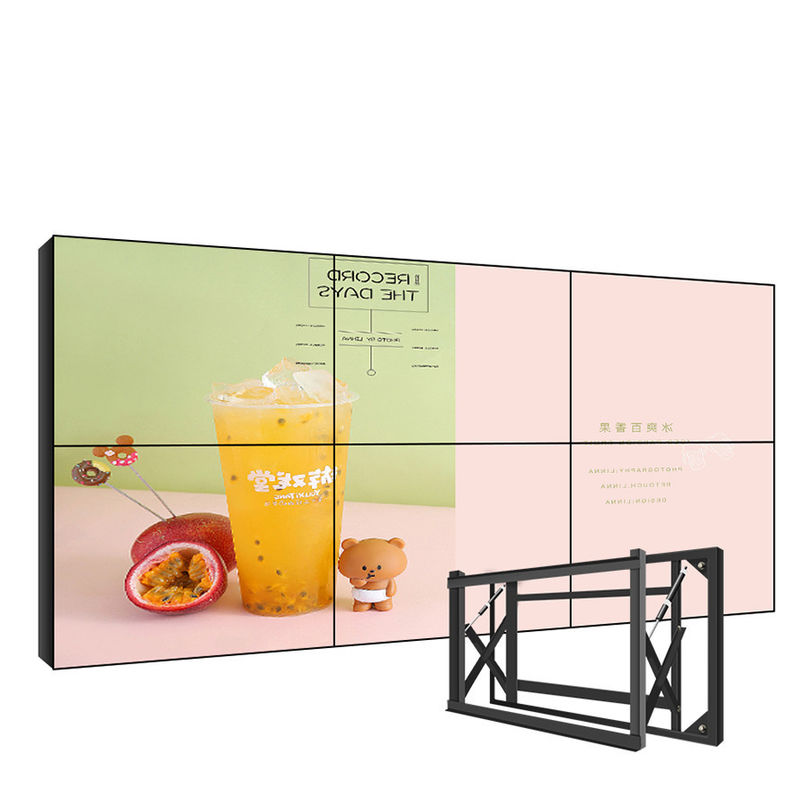

49" wall mounted 3X3 Seamless Display Screen Narrow Bezel 4K Lcd Video Wall
Description of LCD Video Wall
Excellent super narrow bezel design with just 3.5 mm bezel width between screens
Built-in 3D noise reduction, making the image clean and outline more vivid
FHD display 1920x1080
LED backlit technology brings you perfect visual effect
4K input supported (Option)
Built-in speakers and remote control supported
Available sizes: 42",46”, 47”, 49, 55”, 60”
Advantages of LCD Video Wall
Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
Low power consumption and low heat radiation
Long service life lowers the cost of usage and maintenance
Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
Economical and practical: High performance and high quality make it cost less.
| Panel | Brand | S-series | L-series | B-series |
| Panel size | 46 55 65 inch optional | 49 55 inch optional | 46 49 55 inch optional | |
| Bezel | 1.7/3.5/5.5mm | 0.88/1.8/3.5mm | 0.99/3.5mm | |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | |
| Brightness | 500~700 cd/m² | 500~700 cd/m² | 500~700 cd/m² | |
| Constract ratio | 1200:1, 3500:1, 4000:1 | 1200:1, 1300:1, 1400:1 | 1300:1, 1400:1 | |
| Viewing angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | |
| Color | 16.7M , 72% (CIE1931) | 16.7M , 72% (CIE1931) | 16.7M , 72% (CIE1931) | |
| Backlit | WLED | WLED | WLED | |
| Frequency | 60Hz | 60Hz | 60Hz | |
| Signal interface | LVDS | LVDS | LVDS | |
| Repond time | 8ms | 8ms | 8ms | |
| Life spang | 60000 hours | 60000 hours | 60000 hours | |
| I/O | Interface | HD Interface, VGA in, DVI, BNC, Support Picture in Picture(PIP/POP/PAP) | ||
| Concatenation port | RS232-RJ45 in/out | |||
| Video | Color system | PAL/NTSC/Auto-Identify | ||
| Scene roaming | Support | |||
| Power | Power input | Build-in type, 100 ~ 240V AC, 50/60Hz | ||
| Power consumption | 180W (Max.); standby power lesss than 3w | |||
| Outlook | Shell material | Cold-rolled sheet, black | ||
| Screen position | Landscape, protrait optional | |||
| Unit demenssion | 1210.81(L)*681.52(W)*63.24+45(thickness)mm | |||
| Optional | Installation | Floor standing cabinet/bracket, and wall mounted bracket optional | ||
| Touch screen | IR touch screen optional | |||
| Splitter & matrix | 1ch in, 4/8/12/16ch out splitter optional; Matrix optional | |||
| Package | Unite Package | PE film + Foam corner protector + honeycomb box | ||
| Export Package | Export wooden box or wooden pallet | |||
| Accessories | HD cable, RJ45 cable, remote control*1, IR sensor*1 | |||
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
