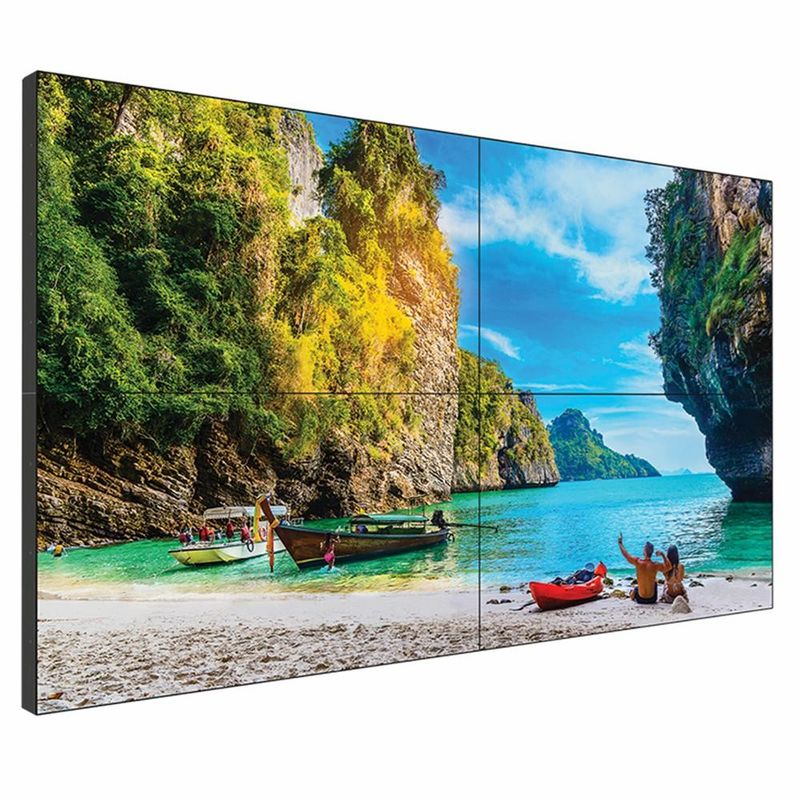

55 Inch Seamless Lcd Wall , 0.8mm 2x2 Ultra Narrow Bezel Video Wall

55 Inch Seamless Lcd Wall , 0.8mm 2x2 Ultra Narrow Bezel Video Wall
55 Inch Seamless Lcd Wall , 0.8mm 2x2 Ultra Narrow Bezel Video Wall
video play

Large Image :  55 Inch Seamless Lcd Wall , 0.8mm 2x2 Ultra Narrow Bezel Video Wall

Product Details:
Place of Origin: GuangDong,CN
Brand Name: Topview
Certification: CE,FCC,ROSH,C-TICK
Model Number: TD-V5501
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: wooden case, carton, flight case are option
Delivery Time: 5-15 days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4000pcs per month
Detailed Product Description
Input Voltage: AC100~240V 50/60Hz Surface: Metal Shell, Anti-static,anti-magnetic,anti-strong Electric Field Interference
Maximum Power Consumption: 220W Brightness: 500cd/m2
Network: Lan/wifi/4g Life(hrs): >60,000(hrs)
After Sales Service: Video Technical Support, Free Spare Parts, Field Installation Product Name: Samsung LG Tv 55 Inch Seamless 0.8mm Narrow Bezel 3x3 Lcd Video Wall
High Light:

seamless lcd wall

,

ultra narrow bezel video wall

Samsung LG tv 55 inch seamless 0.8mm narrow bezel 2x2 lcd video wall



Narrow bezel design ---Industrial grade LCD panel ,high quality ,Practical ,good vision effect.

Signal interface rich --- RS232, HDMI,DVI,VGA,DP-loop out(daisy chain)

HD video wall unit--- High brightness,high contrast,High gamut .

Flexible structure design ---easy installation ,extensible,arbitrary combination

Stable performance,suitable working for a long time



What can we service for you ?



1. We ship within 2~7days as soon as possible;


2. We support sample service, MOQ = 1;


3. We have strong R & D and production capabilities and have sufficient inventory;


4. We will innovate and develop new products every month;


5. We are OEM / ODM;


6. We are at your service 24 hours. Product quality issues can be returned at any time;


7. We ship your products with the fastest and best logistics;


8. Gift Reward:Free support stand, smart pen, software service;


9. Technical Support;





Panel Specifications
LCD Technology Samsung TFT-LCD
Active Screen Diagonal 55" (1397mm)
Pixel Pitch(WxH) 0.630x0.630mm
Active Display Area(WxH) 1209.6x680.4mm
Panel Dimension(WxHxD) 1215.3x686.1x64mm
Total Bezel Width 5.3mm | 0.208”
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System WLED
Luminance(nits) 450cd/sqm
Contrast 3500:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing
Processor
DVI-I DUAL LINK 1
HDMI 1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 2
ISP IN 1
IR IN 1
CODING BUTTON 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)




Description


♦ Excellent ultra narrow bezel design with just 3.5mm bezel width between screens


Built-in 3D noise reduction, making the image clean and outline more vivid


Full HD display 3840x2160 display


LED backlit technology brings you perfect visual effect


4K input supported

Advantages of LCD Video Wall


Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.


High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.


Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.


Low power consumption and low heat radiation


Long service life lowers the cost of usage and maintenance


Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm


Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.


Economic al and practical: High performance and high quality make it cost less.



55 Inch Seamless Lcd Wall , 0.8mm 2x2 Ultra Narrow Bezel Video Wall 0





55 Inch Seamless Lcd Wall , 0.8mm 2x2 Ultra Narrow Bezel Video Wall 1





55 Inch Seamless Lcd Wall , 0.8mm 2x2 Ultra Narrow Bezel Video Wall 2



55 Inch Seamless Lcd Wall , 0.8mm 2x2 Ultra Narrow Bezel Video Wall 3







55 Inch Seamless Lcd Wall , 0.8mm 2x2 Ultra Narrow Bezel Video Wall 4





FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
