Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | AC100~240V 50/60Hz | Viewing Angle: | 89 89 89 89 |
|---|---|---|---|
| Surface: | Metal Shell, Anti-static,anti-magnetic,anti-strong Electric Field Interference | Maximum Power Consumption: | 220W |
| Brightness: | 500cd/m2 | Network: | Lan/wifi/4g |
| Life(hrs): | ＞60,000(hrs) | Product Name: | Big Screen LCD Video Wall 4k Full HD , Vertical Interactive 3x1 Video Wall |
| High Light: | seamless lcd wall,seamless video wall |
||

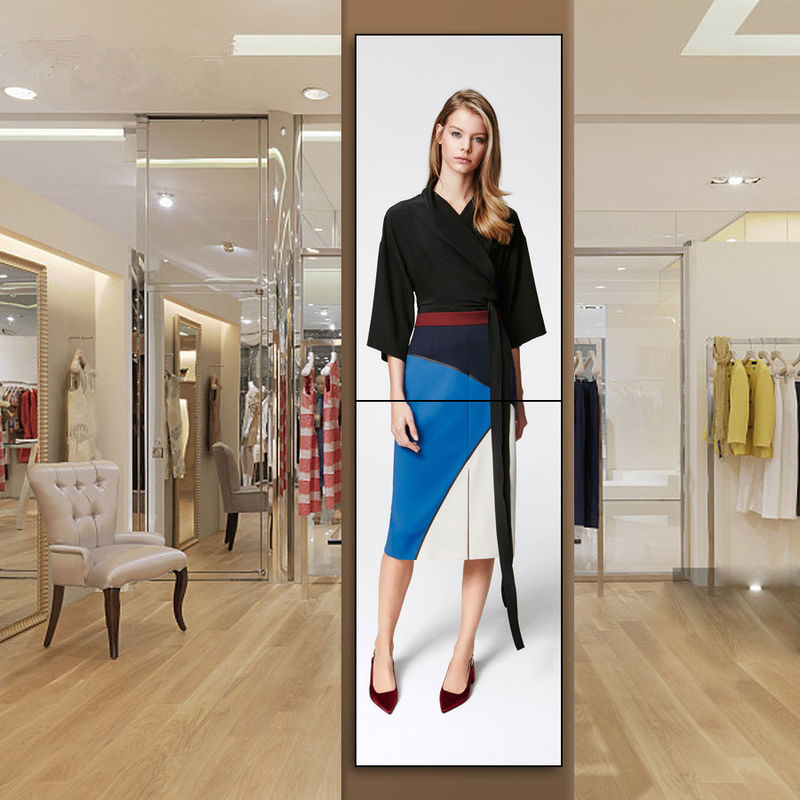

Big Screen LCD Video Wall 4k Full HD , Vertical Interactive 3x1 Video Wall
Main Features

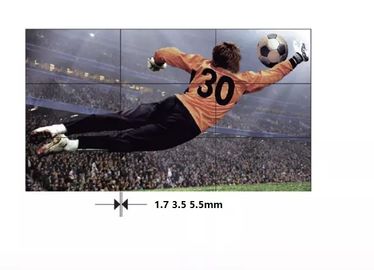

1. Ultra-narrow border design of the current width of only 3.5mm at present
2. Full-screen high definition display, up to 1080P
3. Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone
4. DID using proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.
5. Long life, stable operation, no burns, injuries, low maintenance costs
A wealth of input and output interface, VGA, DVI, YPbPr, Av interface terminal, can be accessed by computers and a variety of video equipment.
6.Brand-new ultra-wide viewing angle technology extended(S-PVAS-IPS), ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.
| Panel Specifications | |
| LCD Technology | Samsung TFT-LCD |
| Active Screen Diagonal | 55" (1397mm) |
| Pixel Pitch(WxH) | 0.630x0.630mm |
| Active Display Area(WxH) | 1209.6x680.4mm |
| Panel Dimension(WxHxD) | 1215.3x686.1x64mm |
| Total Bezel Width | 5.3mm | 0.208” |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | WLED |
| Luminance(nits) | 450cd/sqm |
| Contrast | 3500:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
| Processor | |
| DVI-I DUAL LINK | 1 |
| HDMI | 1 |
| VGA | 1 |
| CVBS IN | 1 |
| CVBS OUT | 1 |
| RS232 IN | 1 |
| RS232 OUT | 2 |
| ISP IN | 1 |
| IR IN | 1 |
| CODING BUTTON | 1 |
| AC IN | AC100-240V |
| Color System Support | PAL/NTSC/SECAM |
| Control Type | IR Remote &Software Control |
| Menu Language | English/Chinese(Multiple Language can be customized) |
| Brand | Screen panel model number | Panel size | Brightness | Bezel |
|
of Samsung |
LTI460HN09 | 46 inch | 500 cd/m² | 5.5mm |
| LTI460HN11 | 46 inch | 500 cd/m² | 3.5mm | |
| LTI460HN12 | 46 inch | 700 cd/m² | 3.5mm | |
| LTI460HN15 | 46 inch | 500 cd/m² | 1.7mm | |
| LTI460HN13 | 46 inch | 700 cd/m² | 1.7mm | |
| LTI550HN11 | 55 inch | 500 cd/m² | 3.5mm | |
| LTI550HN12 | 55 inch | 700 cd/m² | 3.5mm | |
| LTI550HN14 | 55 inch | 700cd/m2 | 1.7mm | |
| LTI550HN17 | 55 inch | 500 cd/m² | 1.7mm | |
| LTI650FN01 | 65 inch (4K) | 700cd/m² | 3.5mm | |
|
of LG |
LD490DUN-THC4 | 49 inch | 450 cd/m² | 3.5mm |
| LD550DUN-TKB2 | 55 inch | 500 cd/m² | 3.5mm | |
| LD550DUN-TKA2 | 55 inch | 700cd/m² | 3.5mm | |
| LD550DUN-THA8 | 55 inch | 700cd/m² | 1.8mm | |
| LD550DUN-THB8 | 55 inch | 500 cd/m² | 1.8mm | |
| LD550DUN-TMA2 | 55 inch | 500cd/m² | 0.88mm | |
| LD550DUN-TMA1 | 55 inch | 700cd/m² | 0.88mm | |
|
of BOE |
DV460FHM-NV0 | 46 inch | 500 cd/m² | 3.5mm |
| DV490FHM-NV0 | 49 inch | 500 cd/m² | 3.5mm | |
| DV550FHM-NV8 | 55 inch | 500 cd/m² | 3.5mm |
Advantages of LCD Video Wall
♦ Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
♦ High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
♦ Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
♦ Low power consumption and low heat radiation
♦ Long service life lowers the cost of usage and maintenance
♦ Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
♦ Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
♦ Economic al and practical: High performance and high quality make it cost less.
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
