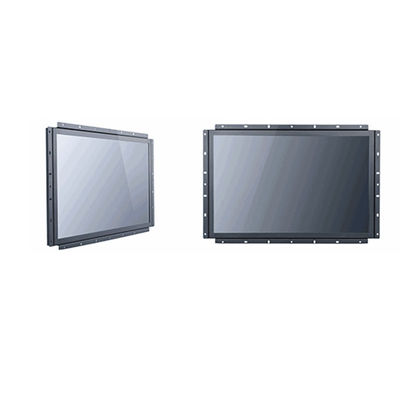

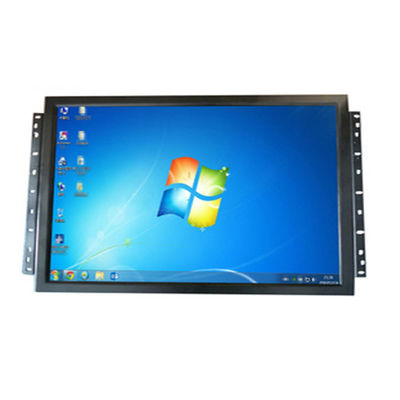

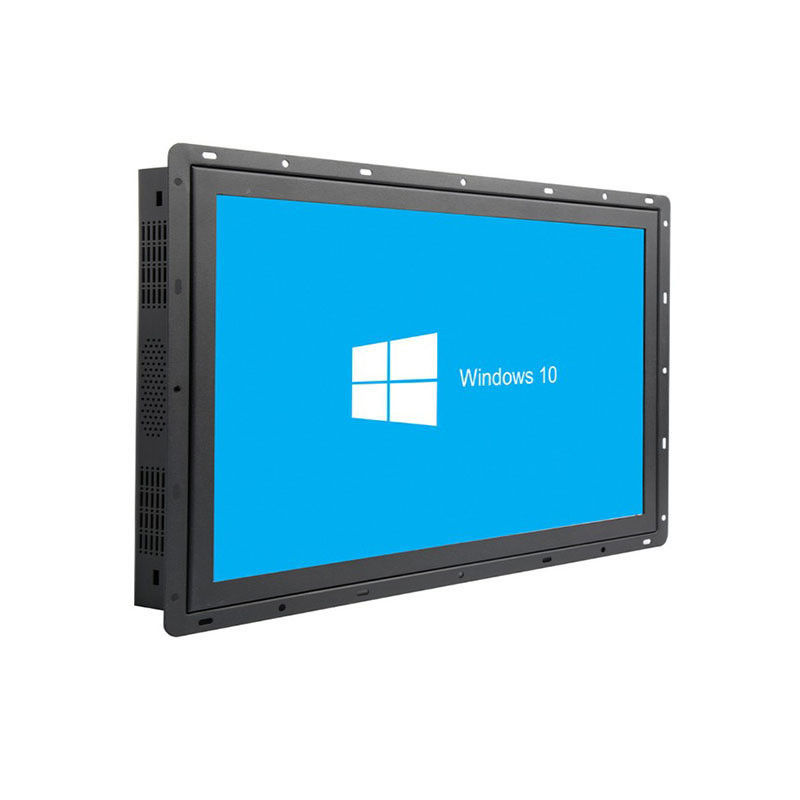

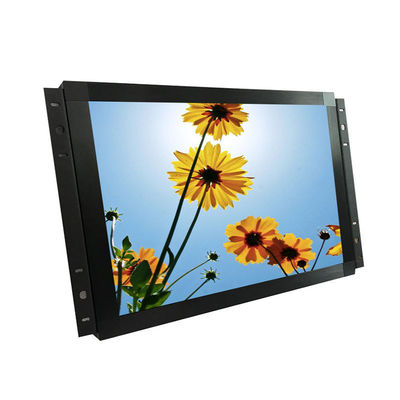

ROSH 450cd/m2 Open Frame LCD Display 21in Capacitive

Large Image : ROSH 450cd/m2 Open Frame LCD Display 21in Capacitive

Product Details:

Place of Origin:	GuangDong,CN
Brand Name:	Topview
Certification:	CE,FCC,ROSH,C-Tick
Model Number:	TD-3204

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	10-15days after your payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	4000 pcs per month

Contact Now

Detailed Product Description

Input Voltage:	AC100~240V 50 /60 HZ	Viewing Angle:	178 /178
Material:	Aluminum Alloy Frame	Brightness:	450cd/m2
Installation:	VESA Standard Mounting Hole	Panel Brand:	SUMSUNG LG CHIMEI
Name:	Industrial Open Frame Display 21 Inch Capacitive Touch Screen Monitor ATM Machine Kiosk High Brightness Touchscreen	Operation OS:	Android/Windows
Highlight:	450cd/m2 Open Frame LCD Display , ROSH Open Frame LCD Display , 21in Capacitive ATM Machine Kiosk

Industrial Open Frame Display 21 Inch Capacitive Touch Screen Monitor ATM Machine Kiosk High Brightness Touchscreen

Features:

1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc.

2.Outer shell is made of extra good quality metal material, which is painted by powder-spray craft work.

3.Support shockproof and dust proof function.

4.Adopts high transparent tempered glass (4-6 mm ) as protection layer toprevent lcd/led panel being broken or distorted.

5.Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) from being stolen.

6.Support IR Remote controller, user can use remote controller to operate the whole lcd. ( key buttons is optional )

7.Build-in speakers: 2 x 5W. Amplifier / 3.5mm audio jack is optional.

8.Playing circles automatically when powers on .

9.Allowing memory of breakpoint/AD management system.

10.Automatically generating playing list/Mixed displaying of videos,images and music.

Model No.:	Topview-2152
Display Type:	Active Matrix TFT LCD, LED Backlight
Touch Technology:	Projected Capacitive (10 Points)
Case/ frame Color:	Black
The Diagonal Dimension:	21.5" iagonal
Aspect Ratio:	16:9
Overall Dimensions:	532mm(W) x319 mm(H),Thickness: 47 mm)
Active Area:	476.6mm(H) x 268.1mm(V)
Display Colors:	16.7M
Resolution(pixel):	1920 x 1080 @ 60Hz
Brightness(Standard):	250 cd/m²
Response time:	5 ms
View Angle(from center):	L/R:89/89;U/D:89/89 (Typ.)(CR≥10)
Contrast Ratio:	1000:1(Typ.)
Input:	VGA,DVI,HDMI(optional DP)
Input Video Signal Connector:	Female head DE - 15 connector, female head DVI - D, Dual -Link connector, female head HD connector
OSD:	Digital OSD
User Controls:	OSD Button: Menu, Up, Down, Select, Power
Power:	Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm (± 0.1mm); Needle Inner Diameter:2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm)
Power:	External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(± 0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0.3mm);
Temperature:	Work: 0 ° C ~ 40 ° C; Storage: -20 ° C ~ 60 ° C
Humidity:	Work: 20% to 80%; Storage: 10% to 90%
Installation options:	Open Bracket Mounting,VESA Mounting;
Warranty:	1 Year

ROSH 450cd/m2 Open Frame LCD Display 21in Capacitive 0

ROSH 450cd/m2 Open Frame LCD Display 21in Capacitive 1

ROSH 450cd/m2 Open Frame LCD Display 21in Capacitive 2

ROSH 450cd/m2 Open Frame LCD Display 21in Capacitive 3

ROSH 450cd/m2 Open Frame LCD Display 21in Capacitive 4

ROSH 450cd/m2 Open Frame LCD Display 21in Capacitive 5

FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
