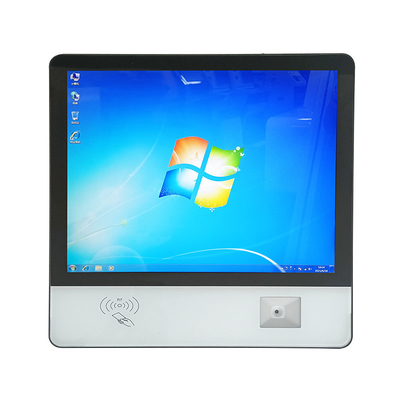

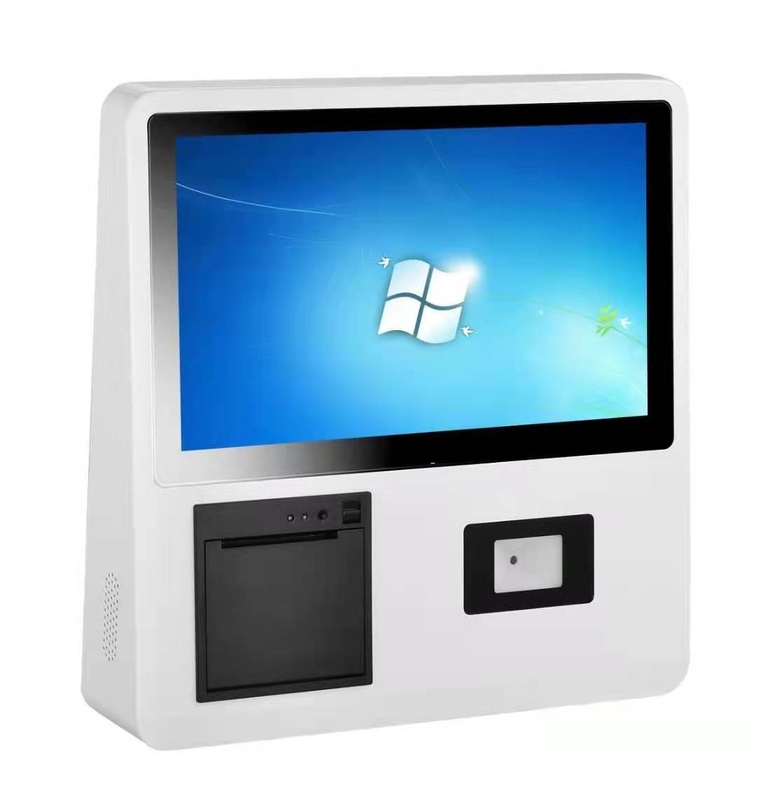

RJ11 21.5" Wall Mounted Digital Signage PCPA Touch POS Terminal Kiosk

22" Wall Mounted PCPA touch Kiosk POS Terminal Self Service Ticket Vending Machine in Hotel&Restaurant&Campus

Key Features

-With thermal receipt printer, PIN pad and card reader
- High-sensitivity, high light-transmittance, anti-glare, vandal-proof SAW touchscreen
-  17´ ´ , 19´ ´ 22"TFT LCD displays for option
- Durable steel enclosure, extra thin, stylish and floor space-saving design
- Built-in Hi-Fi amplified speakers
- Customizable
- Applications: Office building, court house, hospital/medical center, airport, university, government building, shop, theater and other public places where information and/or are provided in self-service and interactive
Manner.

Technical Specifications

TFT LCD Display

- Resolution: 1024x768(15´ ´ )
1280x1024(17´ ´ And 19´ ´ )
- Brightness: 250~300 nits
- Contrast ratio: 450: 1
- Response time: 8 ms

Touch Screen

- Vandal-proof SAW touch screen
- Material: Heat tempered glass with thickness 6mm
- Resolution: 4096*4096
- Deviation of error: <2mm
- Light Transmittance: ≥ 92%
- Surface Hardness: 7 Mohs scale
- Lifetime: 50, 000, 000 times at one single location
- Response time: Less than 16 ms
- Touch activation force: 10~100g

Enclosure

- Durable steel enclosure, paint-finish (different colors for option)
- Built-in power control panel, and Hi-Fi speakers.
- Two cooling fans for computer board and main body separately
- RJ45/RJ11 interface
- Large access doors with tubular locks/keys

Mother Board

- CPU: Intel Pentium dual core E3400, 2.6G Hz(upgradeable on request)
- RAM: 2GB (upgradeable on request)
- Hard Disc: 320GB (upgradeable on request)

Compatible Operation System

- Win3. X/98/2000/NT4.0/XP/Win7/Linux

Working Voltage

- AC 220V, 50 Hz or 110V, 60 Hz for option

Ambient Environment

- WorkingTemperature: -20º C~65º C; RelativeHumidity: 30%~90%
- Storage Temperature: -40º C~80º C; Relative Humidity: 5%~95%

Dimensions & Weight
-- Weight: 20 kgs for 19inch
- 45(height) x 65(width) x 15(depth) CMs for 19inch


FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
