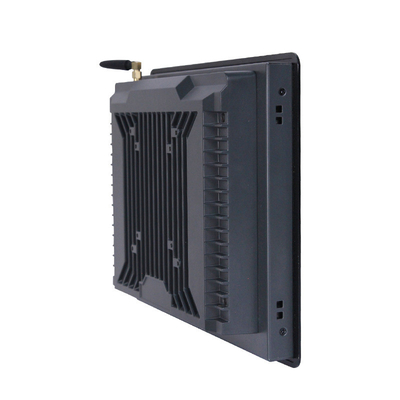

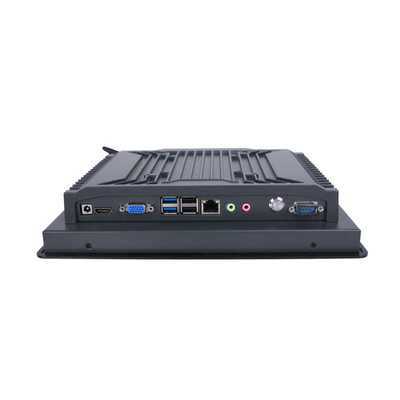

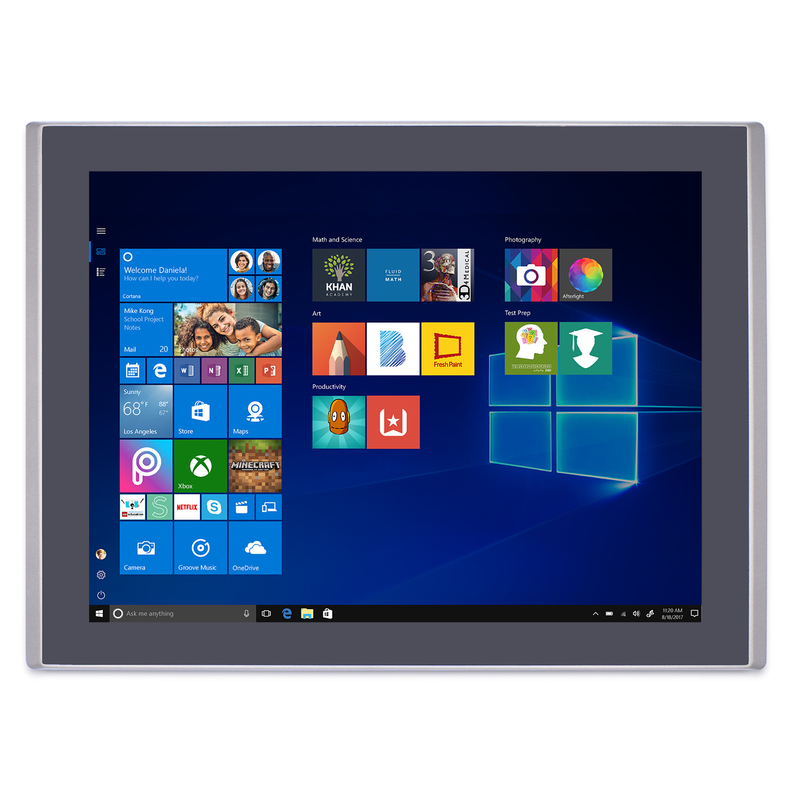

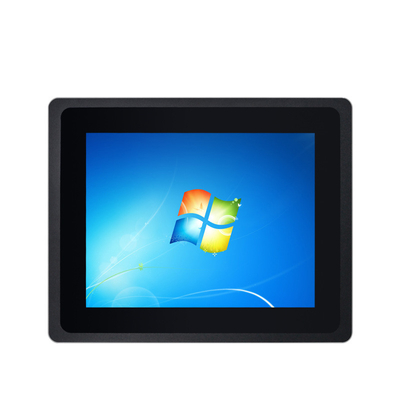

Fanless Touchscreen Embedded Panel PC 12.1 Inch RS232 ATX Switch

Fanless Touchscreen Embedded Panel PC 12.1 Inch RS232 ATX Switch
Fanless Touchscreen Embedded Panel PC 12.1 Inch RS232 ATX Switch
video play

Large Image :  Fanless Touchscreen Embedded Panel PC 12.1 Inch RS232 ATX Switch

Product Details:
Place of Origin: GuangDong,CN
Brand Name: Topview
Certification: CE,FCC,ROSH,C-TICK
Model Number: TD-T1210
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10-15days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4000pcs per month
Detailed Product Description
Material: Cold Rolled Steel Input Method: Finger,Touch Pen
Power Supply: AC110V-240V OS: Android/Linux/win7/win8/win10
Size: 12.1/10.1inch Dimensions: 26.5cm(L) *18.5cm(W) *3.9cm(H)
Color: Black ,silver And White(customized) Optional: Printer/blue Tooth/webcam Can Be Added
Name: Rugged 10.1 Inch 16:9 Widescreen Fanless Touchscreen Embedded Industrial Panel PC Industrial Computer Usage: Industrial
Touch Screen: Capacitive 10 Touch Points
High Light:

Fanless Touchscreen Embedded Panel PC

,

RS232 Embedded Panel PC

,

ATX Switch Rugged Panel PC

Rugged 12.1 Inch 16:9 Widescreen Fanless Touchscreen Embedded Industrial Panel PC industrial computer



Processor
Intel Celeron J1900/ Intel Core i5-4200U/Intel Core i7-4500U
Memory
Onboard DDR3L 4G memory
Storage
support 1*MSATA SSD+1*SATA HDD/SSD+1*M.2 SSD(only for core series)
Lan
2*GbE RJ45 Intel@i211-AT

3*USB 2.0,1*USB 3.0,inside 1*USB2.0 dongle interface

2*DB9-RS232/422/485 COM

2*3-wire RS232/485 COM phoenix terminal

2*3-wire RS232 COM phoenix terminal
Interface Port
1* Audio line-out

2*8Ω 1W Speak out(optional)

1*phoenix terminal DC 9-36V Input

1*AT/ATX Switch

1*HD output

1*14bit GPIO(Optional)
WIFI
1x full height Mini PCI-E,onboard SIM slot, support 3G/4G
Resolution
16.2M Color, 1280*800 ( 1280*600 optional)
Panel
TFT LCD (support 10.1” 12.1” 15.1” 17”)
Backlight Hour
(LED )30,000
Brightness
400cd/m²
Visual
-85~85°(H) -85~85°(V)
Type
5 wire resistance type
Dimen
289.53*192.44*48.3MM(for 10.1”)
Weight
NW: 2.7KG, GW: 4.5kg(10.1“ weight, also support 12.1” 15”)





Fully enclosed design, IP65 grade water-proof and dust-proof, fanless design, silent and 24*7 hours stable working, 9V to 36V wide voltage power input, suitable for most industrial requirement. Onboard 4G memory chip, accept OEM to 1 DDR3 memory slot, support max 8GB RAM. Onboard 1 SATA slot, 1 mSATA slot, 1 Mini PCI-e and SIM slot, support 3G/4G wifi moudule.



Fanless Touchscreen Embedded Panel PC 12.1 Inch RS232 ATX Switch 0



Fanless Touchscreen Embedded Panel PC 12.1 Inch RS232 ATX Switch 1



Fanless Touchscreen Embedded Panel PC 12.1 Inch RS232 ATX Switch 2



Fanless Touchscreen Embedded Panel PC 12.1 Inch RS232 ATX Switch 3















FAQ


1) Q: How about your product quality?

A: There are three inspections in our company. from materials, product procedure, spection before shipping.



2) Q: What payment methods your company accept?

A: We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union and MoneyGram.



3) Q: How long is the warranty time for your products?

A: Our officially promised warranty time is one whole year after delivery at best.



4) Q: I haven't done business with you guys before,how can i trust your company?

A:Our company specialize in digital signage for 8 years,which is longer than most of our fellow suppliers what'smore,we've got quite a lot authority certificates,for example,CE,RoHS,FCC , C-TICK,certificate.SGS I hope those above will be persuasive enough.



5) Q: what's the shipment terms and delivery time of your company?

A: Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggestExpress and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.



6) Q: Do you give any discount ?

A: I'll surely try my best to help you get those by the best price and good service at the same time.



7) Q: I would like to ask you if it's possible to have my logo on the product.

A: We hope you know that our company Spectrum perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed
