Rear Projection Film 30 Inch Interactive Touch Kiosk Holo Transparent Glass With File Transfer Software

Large Image : Rear Projection Film 30 Inch Interactive Touch Kiosk Holo Transparent Glass With File Transfer Software

Product Details:

Place of Origin:	GuangDong,CN
Brand Name:	Topview
Certification:	CE,FCC,ROSH,C-TICK
Model Number:	TP-3001

Contact Now

Detailed Product Description

Highlight:

30 inch interactive touch kiosk

transparent glass interactive touch kiosk

30 inch interactive touch screen kiosk

Rear projection film 30inch holo kiosk transparent interactive touch kiosk

information touch screen kiosk for Conference

multi-touch touch screen foil

transparent glass touch kisok

in multi-touch touch screen foil under Explosion-proof glass

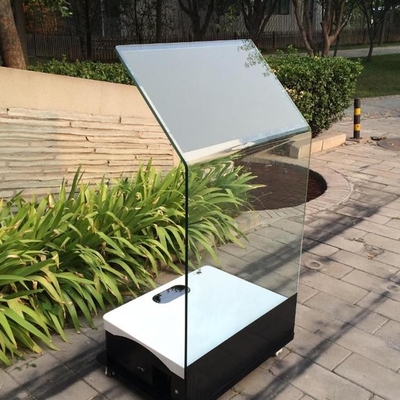

Rear Projection Film 30 Inch Interactive Touch Kiosk Holo Transparent Glass With File Transfer Software 0

Main Features

Unique design

Tempered glass to the main parts of kiosk

High quality 30inch touch foil film with transparent rear projection film

Mini projector for image displaying

Multi touch operation

Various application

Worldwide certificate approval, such as RoHS, CE, and FCC

Touch foil film (there is no gap between kiosk frame and TFT LCD monitor)

Touch type	Projected capacitive touch
Typical feature	Touch through tempered glass
Touch points	Multi 2points (30inch only)
Accuracy	≤1mm
Sensor	56 sensor to multi 2points
Light transmittance	Over 95%
Scanning speed	16ms
Output solution	4096X4096
Safe distance	At least 3mm (between TFT LCD and touch foil)
Life span	7-9 years

Projector

Brand name	Epson CB-W28, 2800 Lumens
Type	Short focus
Brightness	2800lumens
Contrast	3500:1
Standard resolution	XGA (1024*768)
Projection aspect	82inch@1meter
Input interfaces	1XS-Video, 1Xcompenent, 1XVideo, 2XVGA, 1XAudio (Mini-Jack), 1XRS232
Output interfaces	1XVGA, 1XAudio (Mini-Jack)
Voltage	AC 100-240V, 50-60Hz

Kiosk

Material	8-12mm glass
Voltage input	AC 110V – 240V
Power plug	America standard, Europe standard
Work temperature	0°C to 40°C
Storage temperature	-20°C to 60°C
Humidity	20%-80%

Application:

1. Business organizations: Supermarket, Shopping mall, Hotel, Restaurant, Pharmacy

2.Non-profit organizations: Airport, Railway / bus station, Exhibition, Museum, Hospital, School, Convention center, Lottery station, Government affairs center

3.Financial organizations: Bank, Insurance company, Foundation, Security company

4.Entertainments: Movie theater, Club, Bar, Salon
