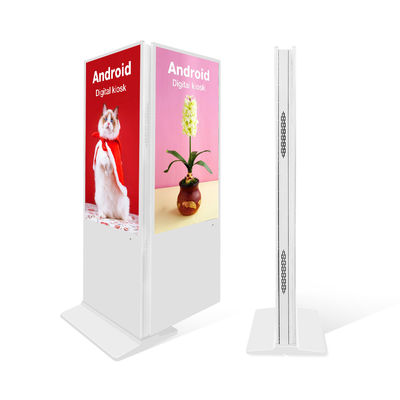

RK3288 55in Interactive Digital Signage Kiosk Double Sided Android 10

RK3288 55in Interactive Digital Signage Kiosk Double Sided Android 10
RK3288 55in Interactive Digital Signage Kiosk Double Sided Android 10
video play

Large Image :  RK3288 55in Interactive Digital Signage Kiosk Double Sided Android 10

Product Details:
Place of Origin: Guangdong, China
Brand Name: Topview
Certification: CE, C-TICK, FCC, RoHS
Model Number: TD-5578
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10-15 days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Input: AC 110V~240V,50/60Hz, 110W Panel Size: 681*1209mm
Operating System: Support Android\Windows System Processor: RK3288 CortexA17,1.8Ghz
After-sales Service: Video Technical Support, Free Spare Parts Name: 55 Inch Touch Screen Interactive Digital Signage Kiosk Double Sided Lcd Screen Smart Tv Full Samsung
Touch Screen: 10-Point Capacitive Touch CPU: I3/i5/i7/RK3368/RK3288
High Light:

RK3288 Interactive Digital Signage Kiosk

,

55in Interactive Digital Signage Kiosk

,

Android 4.4 Touch Screen Lcd Kiosk

55 inch touch screen interactive digital signage kiosk double sided lcd screen smart tv full samsung





Description:

  • We receive any product size custom services.

  • Ultra HD display, efficient energy saving.

  • Double sides display, get refined internally and externally.

  • Hanging installation, space saving.

  • Super flat enclosure, thin and light.



Main Features:

  • Original LG brand full new A+ grade 1920*1080P HD display
  • IR touch screen version and non-touch screen version for option
  • Stand-alone version/Windows/Android system version for option
  • A powerful Octa-core media player enables photo & video playback, while a 8GB flash of onboard memory provides ample storage for files and multimedia content
  • An efficient, user-friendly scheduling interface is available via the on-screen display (OSD); setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time
  • Remote Ads publish
  • Dual Integrated Speakers
  • Offer Digital signage management software support


LCD Screen
LCD Size:
55inch
Screen Ratio:
09:16
Resolution:
1080*1920(H*V)
Brightness:
400cd/㎡
Contrast Ratio:
1600:1
View Angle:
89/89/89/89 (Typ.)(CR≥10)

Touch Panel
Type:
Capacitive/Infrared 10 point Touch Screen
Respond speed:
＜8ms
Touch Durability:
＞50,000,000times
Touch Input:
Any Opaque Objects(Finger,Touch Pen,etc)






PC Configuration
Operation System:
Windows 7/8/10


Connection:
Built-in wifi(Support Wi-Fi 802.11b/g/n protocol)
Blue Tooth module(Support Blue Tooth 4.0)
RJ45,10M/100M
Optional built in 3G/4G with external sim slot and aerial
Processor:
Intel i3 or i5 DUALCORE CPU optional
CPU Clock Speed:
3.0 GHZ
RAM:
4G DDR3
Hard Disk:
128/256/500G
I/O ports:
4*USB2.0,1*RJ-45,1*3.5mm jack plug,1*HDMI out,1*VGA out,1*DC 12V
OS Language:
English(default)






Android Configuration
Operation System:
Android 4.4 or higher


Connection:
Built-in wifi(Support Wi-Fi 802.11b/g/n protocol)
Blue Tooth module(Support Blue Tooth 4.0)
RJ45,10M/100M
Optional built in 3G/4G with external sim slot and aerial
Processor:
358/3188/3288/3399 DUALCORE CPU optional
CPU Clock Speed:
1.2GHz/1.6GHz/2.0GHz/2.2GHz
RAM:
1/2/4G
Hard Disk:
8/16/32G
I/O ports:
2*USB2.0,1*RJ-45,1*3.5mm jack plug,1*HDMI out,1*VGA out,1*DC 12V
OS Language:
English(default)
Installation
Floor standing,free standing, optional

Others
Power Supply:
AC100~240V 50/60Hz 3A
Speaker:
Built-in 2X8Ω/5W high quality stereo loudspeakers
Working Temperature:
0℃-45℃
Storage Temperature:
-20℃-60℃
Working Humidity:
20%-80%
Storage Humidity:
10%-95%
Standard Accessories:
AC power cord,WIFI aerial,bolts,keys and stand set
Others
Net weight
56KG
Accessories
AC power cord *1, safety lock key *2, warranty card *1, certificate *1
Package
Carton



RK3288 55in Interactive Digital Signage Kiosk Double Sided Android 10 0



RK3288 55in Interactive Digital Signage Kiosk Double Sided Android 10 1

RK3288 55in Interactive Digital Signage Kiosk Double Sided Android 10 2



RK3288 55in Interactive Digital Signage Kiosk Double Sided Android 10 3

RK3288 55in Interactive Digital Signage Kiosk Double Sided Android 10 4









RK3288 55in Interactive Digital Signage Kiosk Double Sided Android 10 5









RK3288 55in Interactive Digital Signage Kiosk Double Sided Android 10 6

FAQ:
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.


Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.


Q: what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.


Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.


Q: Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.


Q: What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
