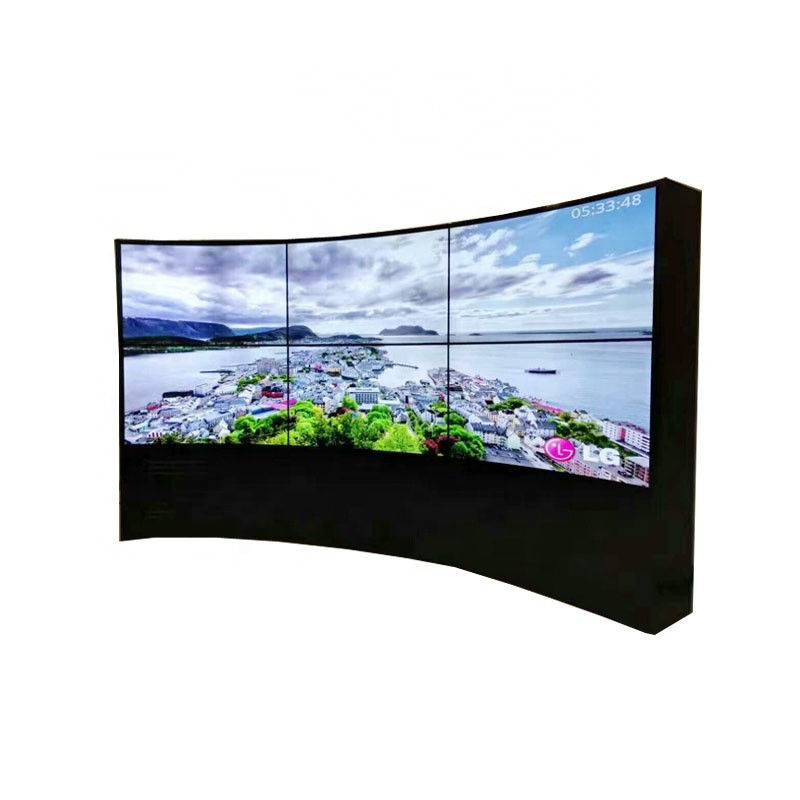

Curved Screen Oled Video Wall 55 Inch 500cd/m2 Brightness For Advertising

Curved Screen Oled Video Wall 55 Inch 500cd/m2 Brightness For Advertising
Curved Screen Oled Video Wall 55 Inch 500cd/m2 Brightness For Advertising
video play

Large Image :  Curved Screen Oled Video Wall 55 Inch 500cd/m2 Brightness For Advertising

Product Details:
Place of Origin: GuangDong,CN
Brand Name: Topview
Certification: CE,FCC,ROSH,C-TICK
Model Number: TD-V4901
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: wooden case, carton, flight case are option
Delivery Time: 5-15 days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4000pcs per month
Detailed Product Description
Input Voltage: AC100~240V 50/60Hz Viewing Angle: 89 89 89 89
Product Name: Curved Screen Oled Video Wall 55 Inch 500cd/m2 Brightness For Advertising Life: 600000hours
Brightness: 500cd/m2 Resolution: 1080P, 4K(optional)
After Sales Service: Video Technical Support, Free Spare Parts, Field Installation Installation: Wall Mount/floor Stand
Highlight:

seamless lcd wall

,

ultra narrow bezel video wall









Video Wall

Panel: from 42 to 55inch or above LG/SAMSUNG/AUO industrial panel



Main features:



1,Branded LG/SAMSUNG/AUO industrial panel, supports 24 hours continuously playing



2,Full hardware structure, no CPU and operating system



3,Easy installation, only fix them together by metal bracket



4,Easy to operating, can operate system together with software flexible, we offer free software

Supports RS-232 serial ports remote control



5,Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232



6,Images are displayed smoothly and naturally without time delay and tailing and image quality is quite smooth



7,Supports 10 x 10 pieces panels splice



8,Easy maintenance, if one unit is going bad, only replace it with a new one



9,Wireless control: common solution



10,The PC needs to connect LCD video wall with RS232 cable

And distance should be within 10m

The longer the cable, the weaker the signal



11,Now wireless control no need to worry about how to hide the cable between the PC and the distance is within Wi-Fi range

The new solution also supports multiple PCs to control LCD video wall



12,Supports multiple user management

Comes with 2xDVI inputs and supports two full HD signals at the same time. The common solution with one DVI input only, it requires a PC of matrix if two DVI inputs needed for the project, then the cost will increased



13,Supports setup screen timer and memory function after cutting off power

Scene management: users can save and preset the scene that want to display and can setup the scene interval in turn time

Accessories: RS232 convertor, RJ45 convertor, VGA cable, RJ45 cable, power cable, remote controller and software



Panel Specifications
LCD Technology Samsung TFT-LCD
Active Screen Diagonal 55" (1397mm)
Pixel Pitch(WxH) 0.630x0.630mm
Active Display Area(WxH) 1209.6x680.4mm
Panel Dimension(WxHxD) 1215.3x686.1x64mm
Total Bezel Width 5.3mm | 0.208”
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System WLED
Luminance(nits) 450cd/sqm
Contrast 3500:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing
Processor
DVI-I DUAL LINK 1
HDMI 1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 2
ISP IN 1
IR IN 1
CODING BUTTON 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)




Description
Excellent ultra narrow bezel design with just 3.5mm bezel width between screens
Built-in 3D noise reduction, making the image clean and outline more vivid
Full HD display 3840x2160 display
LED backlit technology brings you perfect visual effect
4K input supported


Advantages of LCD Video Wall
Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
Low power consumption and low heat radiation
Long service life lowers the cost of usage and maintenance
Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
Economic al and practical: High performance and high quality make it cost less.



Curved Screen Oled Video Wall 55 Inch 500cd/m2 Brightness For Advertising 0



Curved Screen Oled Video Wall 55 Inch 500cd/m2 Brightness For Advertising 1



Curved Screen Oled Video Wall 55 Inch 500cd/m2 Brightness For Advertising 2

Curved Screen Oled Video Wall 55 Inch 500cd/m2 Brightness For Advertising 3









FAQ:
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q: what brand of screen are you using?
A: we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q: Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q: What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
